TOYOTA HIACE VAN COMUTER LH51LB-QR / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(8708- )LH51,61..LHD

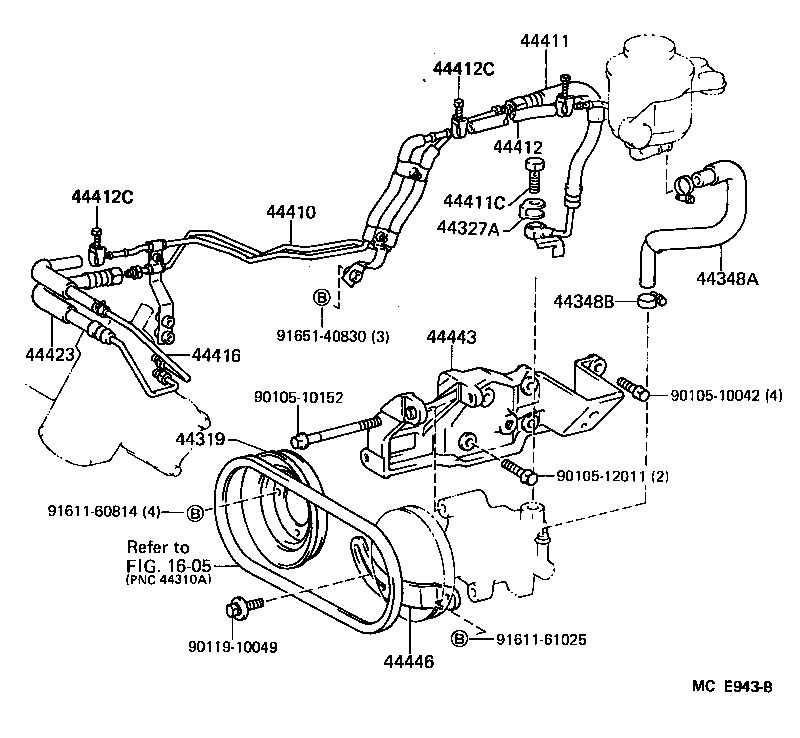

HIACE VAN COMUTER | POWER STEERING TUBE ** Refer Fig 44319 - PULLEY, VANE PUMP DRIVE 44327A - GASKET, PRESSURE PORT, NO.1 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44410 - TUBE ASSY, PRESSURE FEED 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44412 - HOSE, RETURN 44412C - CLAMP(FOR RETURN HOSE) 44412C - CLAMP(FOR RETURN HOSE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44423 - TUBE, OIL PUMP TO GEAR BOX 44443 - BRACKET, PUMP 44446 - STRUT, ADJUSTING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
