TOYOTA HILUX 2WD RN125L-GKMDSV / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

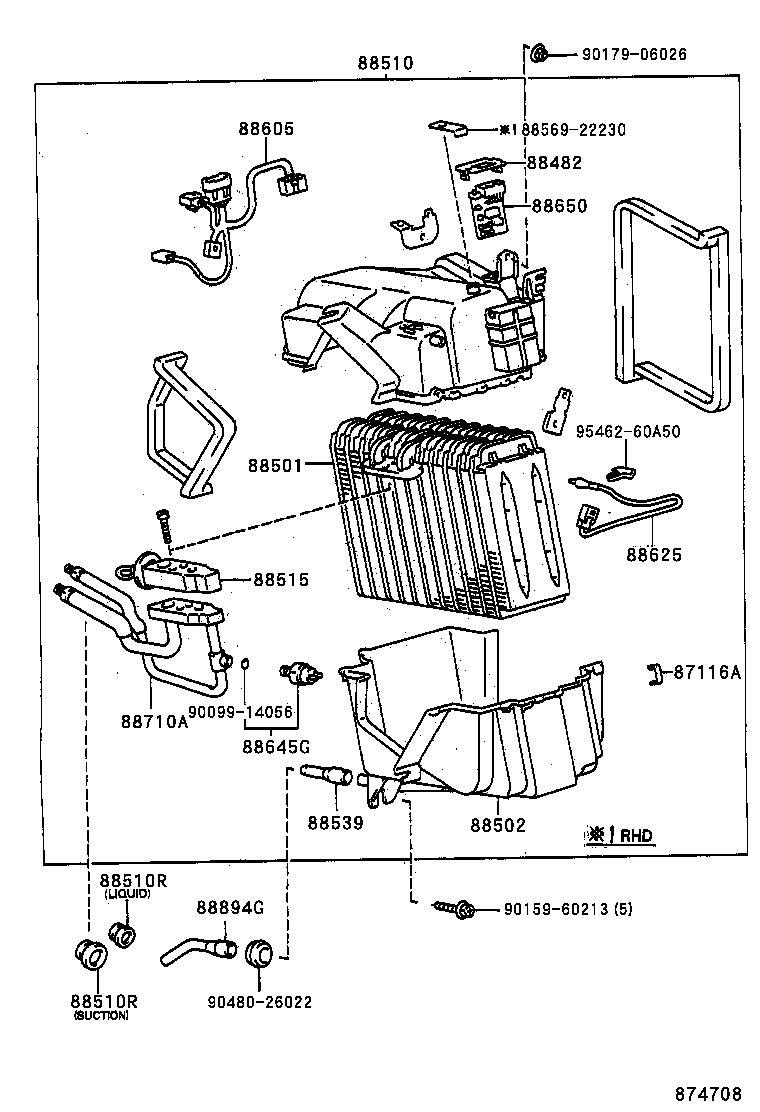

ILLUST NO. 1 OF 2(8907-9308)RN125

HILUX 2WD | HEATING AIR CONDITIONING COOLER UNIT 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) 88482 - CAP, COOLER 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88502 - CASE SUB-ASSY, COOLING UNIT 88510 - UNIT ASSY, COOLER 88510R - GROMMET (FOR COOLER UNIT) 88510R - GROMMET (FOR COOLER UNIT) 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 ** Std Part 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 88625 - THERMISTOR, COOLER, NO.1 88645G - SWITCH, PRESSURE 88650 - AMPLIFIER ASSY, COOLER STABILIZER 88710A - TUBE ASSY, AIRCONDITIONER 88894G - CONNECTOR, DRAIN HOSE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
