TOYOTA HILUX 4RUNNER 4WD YN130R-GKPSEQ / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

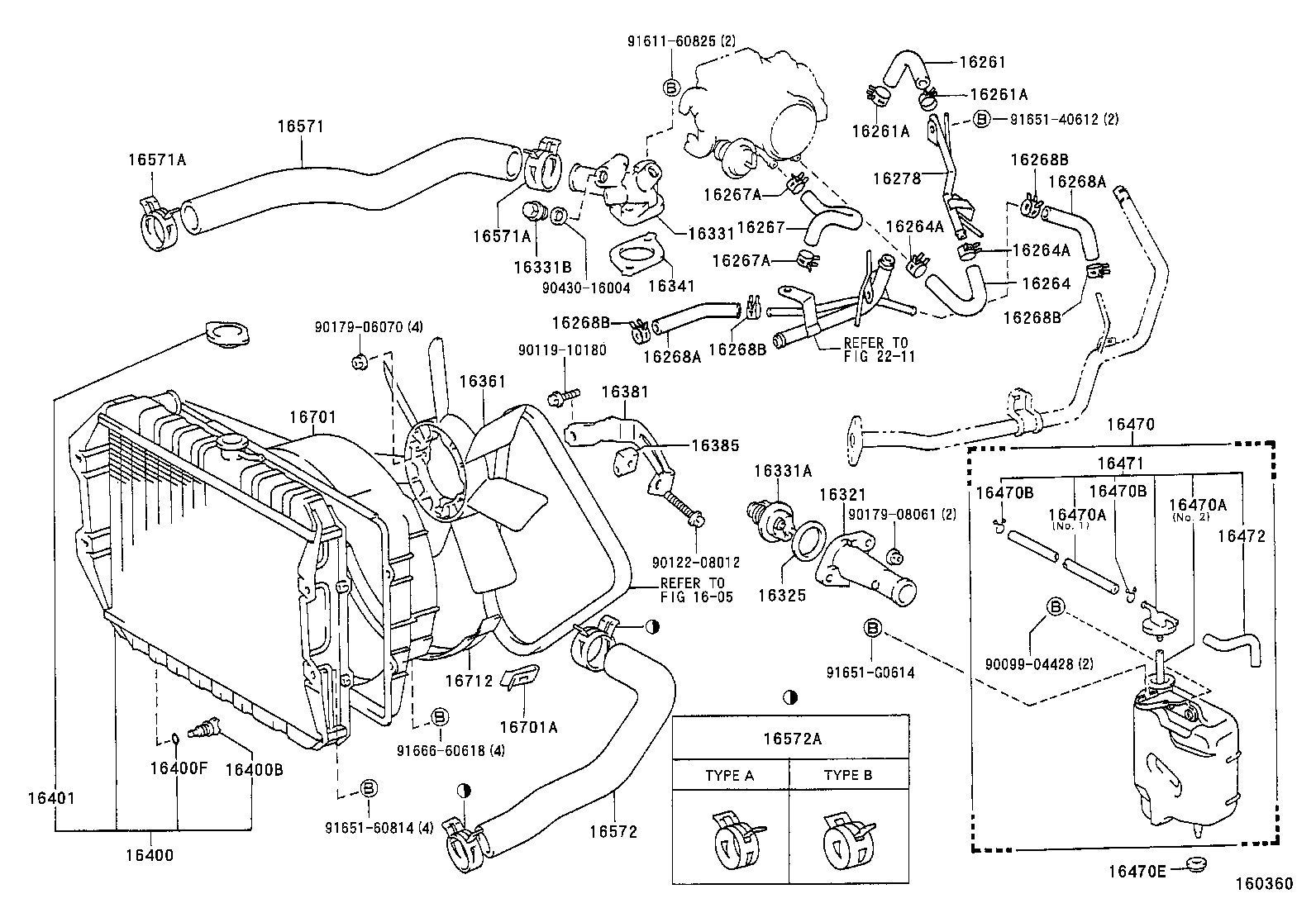

RADIATOR WATER OUTLET

(8908-9008)4YE

HILUX 4RUNNER 4WD | RADIATOR WATER OUTLET ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268A - HOSE(FOR WATER BY-PASS PIPE) 16268A - HOSE(FOR WATER BY-PASS PIPE) 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331B - PLUG(FOR WATER OUTLET) 16341 - GASKET, WATER OUTLET 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470E - GROMMET, RADIATOR RESERVE TANK HOSE 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701 - SHROUD SUB-ASSY, FAN 16701A - CLIP(FOR FAN SHROUD) 16712 - SHROUD, FAN, NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
