TOYOTA HILUX RN61LG-MSEW / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

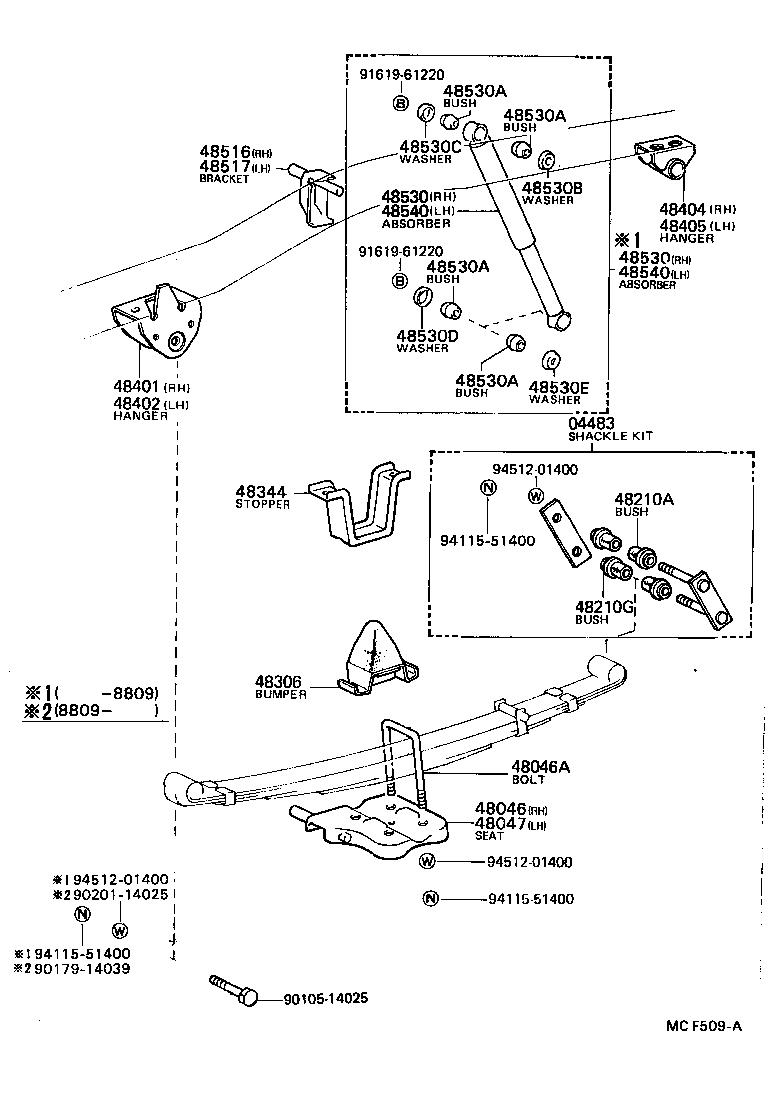

REAR SPRING SHOCK ABSORBER

ILLUST NO. 1 OF 2(8712-8903)RN61

HILUX | REAR SPRING SHOCK ABSORBER 04483 - SHACKLE KIT, REAR SPRING 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046A - BOLT, U(FOR REAR SPRING) 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) 48306 - BUMPER SUB-ASSY, REAR SPRING 48344 - STOPPER, BUMPER, REAR 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 48540 - ABSORBER ASSY, SHOCK, REAR LH 48540 - ABSORBER ASSY, SHOCK, REAR LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
