TOYOTA MR2 SW20R-AJMZFW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

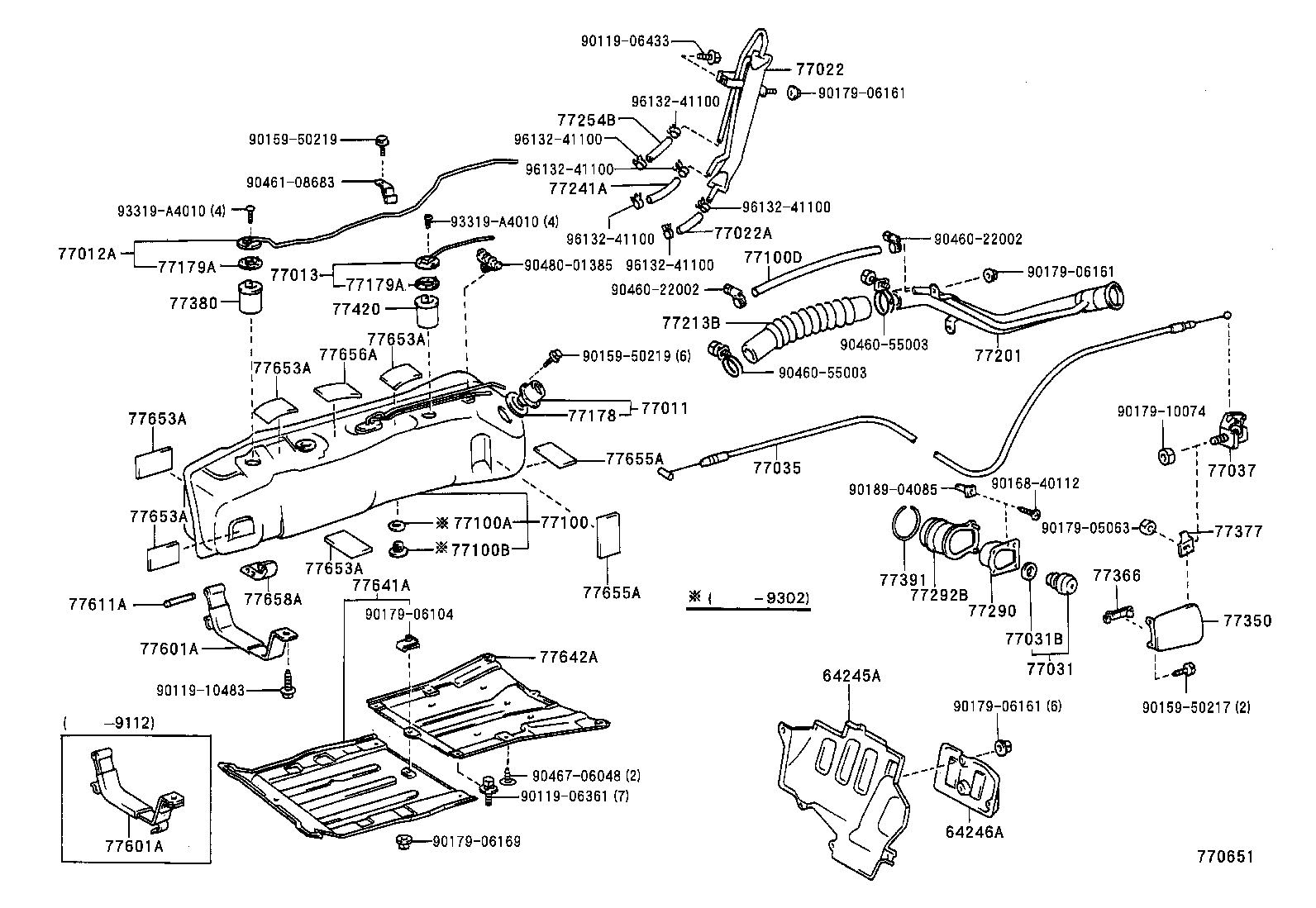

FUEL TANK TUBE

ILLUST NO. 1 OF 2(8912- )

 MR2 |  FUEL TANK TUBE 64245A - INSULATOR, ROOM PARTITION HEAT, NO.1 64246A - INSULATOR, ROOM PARTITION HEAT, NO.2 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179A - GASKET, FUEL TANK BREATHER TUBE 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77213B - HOSE, FUEL TANK TO FILLER PIPE 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77292B - SHIELD, FUEL TANK DRAIN PLUG 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77391 - RING, FUEL INLET BOX 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77641A - PROTECTOR, FUEL TANK, NO.1 77642A - PROTECTOR, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77653A - CUSHION, FUEL TANK, NO.3 77653A - CUSHION, FUEL TANK, NO.3 77653A - CUSHION, FUEL TANK, NO.3 77653A - CUSHION, FUEL TANK, NO.3 77655A - CUSHION, FUEL TANK, NO.5 77655A - CUSHION, FUEL TANK, NO.5 77656A - CUSHION, FUEL TANK, NO.4 77658A - PROTECTOR, FUEL TANK EDGE, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
