TOYOTA DYNA 200 BU65RD-MDT / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

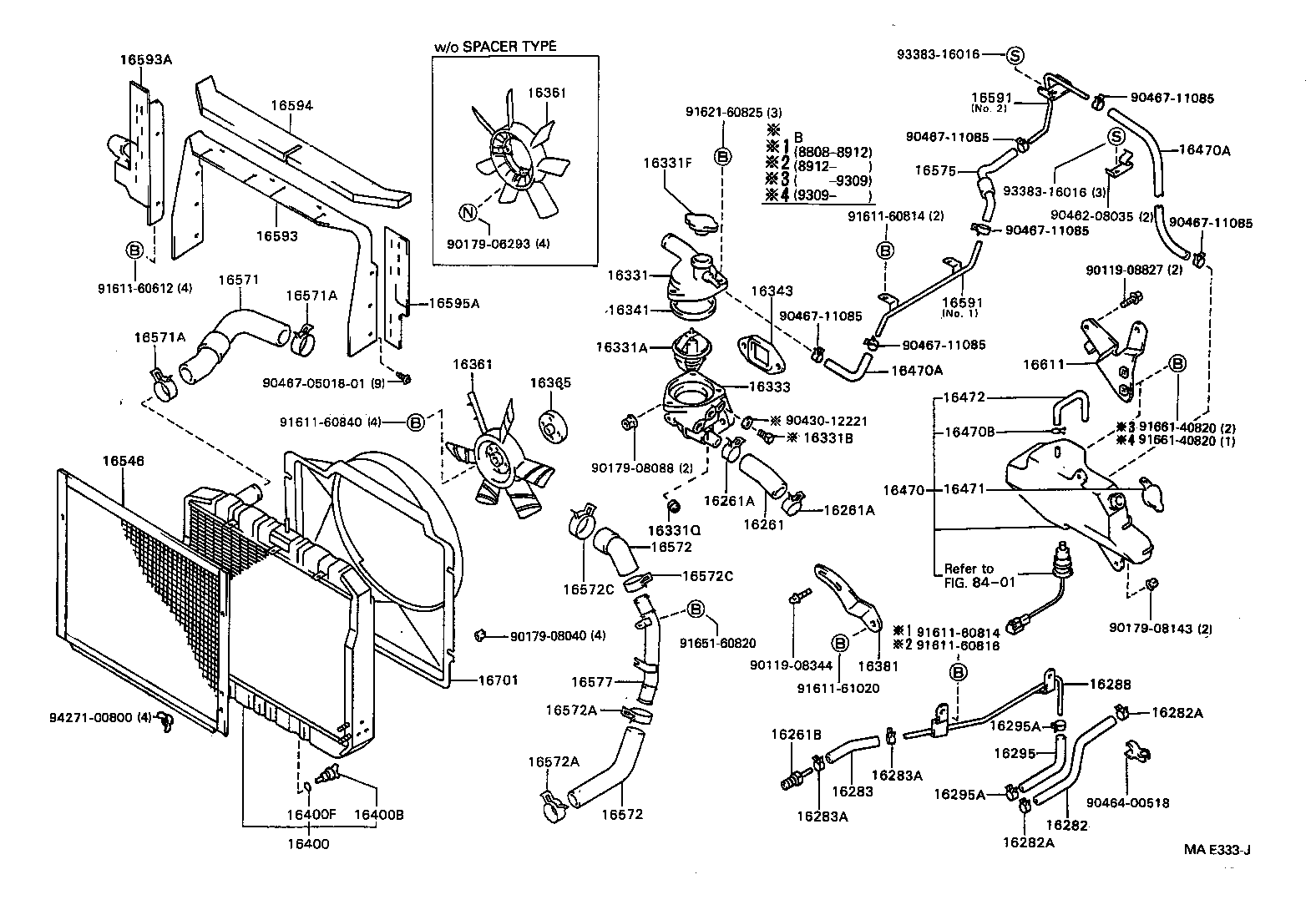

RADIATOR WATER OUTLET

(8808-9505)B..BU60..T3 ; (8808-9505)B,11B,14B..B

 DYNA 200 |  RADIATOR WATER OUTLET 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261B - UNION(FOR WATER BY-PASS HOSE) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16288 - PIPE, WATER BY-PASS, NO.4 16295 - HOSE, WATER BY-PASS, NO.7 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331B - PLUG(FOR WATER OUTLET) 16331F - CAP SUB-ASSY(FOR WATER OUTLET) 16331Q - PLUG(FOR WATER OUTLET) 16333 - HOUSING, WATER OUTLET 16341 - GASKET, WATER OUTLET 16343 - GASKET, WATER OUTLET HOUSING 16361 - FAN 16361 - FAN 16365 - SPACER, FAN 16381 - BAR, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16546 - PROTECTOR, RADIATOR 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16575 - HOSE, RADIATOR, NO.5 16577 - PIPE, RADIATOR, NO.7 16591 - PIPE, RADIATOR 16591 - PIPE, RADIATOR 16593 - GUIDE, RADIATOR AIR, NO.1 16593A - GUIDE, RADIATOR AIR, NO.1 RH 16594 - GUIDE, RADIATOR AIR, NO.2 16595A - GUIDE, RADIATOR AIR, NO.1 LH 16611 - BRACKET, RADIATOR RESERVE TANK 16701 - SHROUD SUB-ASSY, FAN ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
