TOYOTA CROWN JZS133L-AEMDFV / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

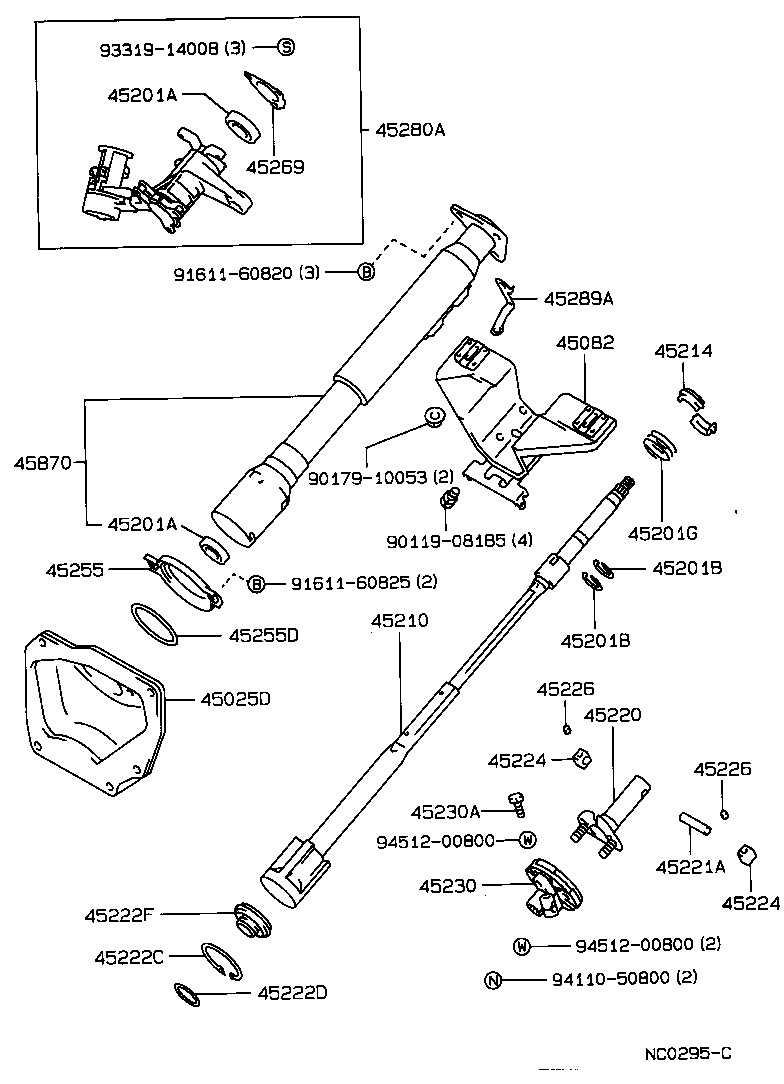

STEERING COLUMN SHAFT

ILLUST NO. 1 OF 3(9110- )B,D

 CROWN |  STEERING COLUMN SHAFT 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45210 - SHAFT ASSY, STEERING MAIN 45214 - RETAINER, MAIN SHAFT SPRING 45220 - SHAFT ASSY, STEERING INTERMEDIATE 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) 45222C - RING, HOLE SNAP(FOR DUST COVER) 45222D - RING, O(FOR DUST COVER) 45222F - COVER, DUST 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45230 - COUPLING ASSY, FLEXIBLE 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) 45255 - PLATE, STEERING COLUMN HOLE COVER 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) 45269 - RETAINER, MAIN SHAFT BEARING 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45289A - SUPPORT, STEERING COLUMN COVER 45870 - TUBE ASSY, STEERING COLUMN  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
