TOYOTA DYNA 200 BU70LV-MD / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR FLOOR PANEL REAR FLOOR MEMBER

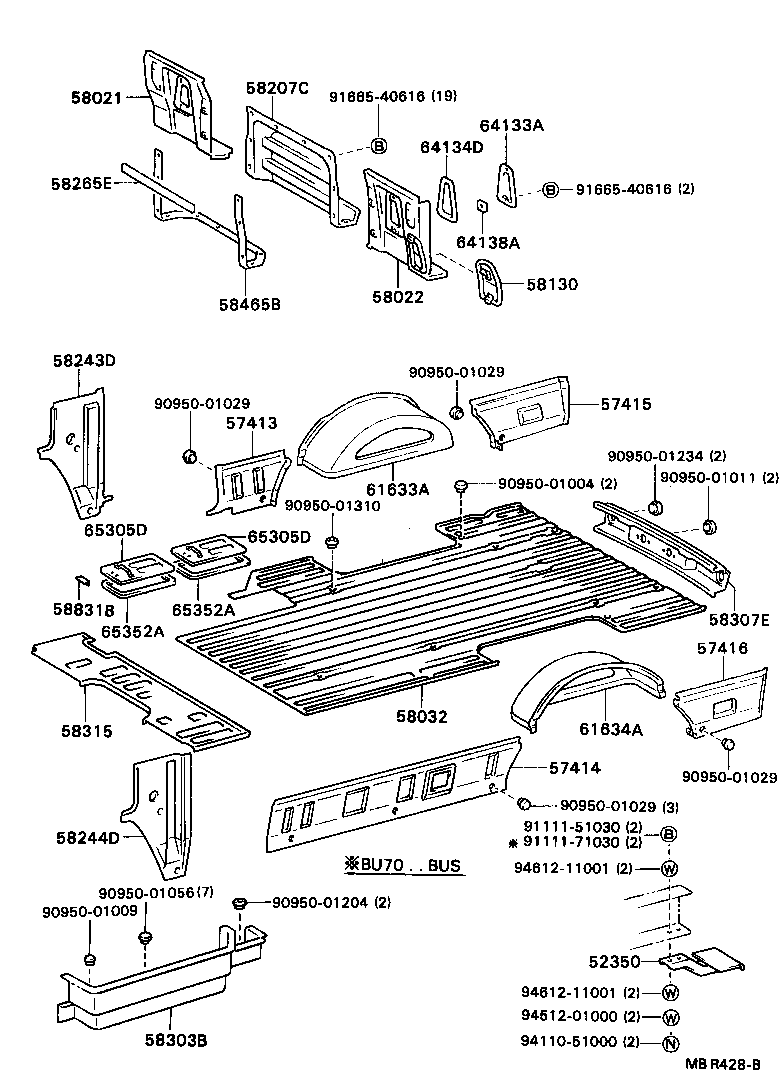

ILLUST NO. 1 OF 2(8808- )BU70

 DYNA 200 |  REAR FLOOR PANEL REAR FLOOR MEMBER 52350 - STEP ASSY, REAR BUMPER 57413 - RAIL, FLOOR SIDE, CENTER RH 57414 - RAIL, FLOOR SIDE, CENTER LH 57415 - RAIL, FLOOR SIDE, REAR RH 57416 - RAIL, FLOOR SIDE, REAR LH 58021 - PANEL SUB-ASSY, HEADER 58022 - PANEL SUB-ASSY, HEADER, LH 58032 - PANEL SUB-ASSY, HEADER 58130 - COVER ASSY, RESERVE TANK SERVICE HOLE 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE 58243D - PANEL, FLOOR SIDE, REAR RH 58244D - PANEL, FLOOR SIDE, REAR LH 58265E - PACKING, TRANSMISSION COVER, C 58303B - STEP SUB-ASSY, REAR FLOOR, RH 58307E - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER 58315 - EXTENSION, REAR FLOOR PANEL 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER 58831B - STOPPER, BATTERY HOLE COVER SPRING 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 64133A - COVER, HEADER PANEL 64134D - PACKING, HEADER PANEL COVER 64138A - SEAL, HEADER PANEL COVER 65305D - COVER SUB-ASSY, BATTERY HOLE 65305D - COVER SUB-ASSY, BATTERY HOLE 65352A - PACKING, BATTERY HOLE COVER, NO.2 65352A - PACKING, BATTERY HOLE COVER, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
