TOYOTA CROWN COMFORT YXS10R-AESBN / TOOL-ENGINE-FUEL / EXHAUST PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

EXHAUST PIPE

(9908-0108)3YPE

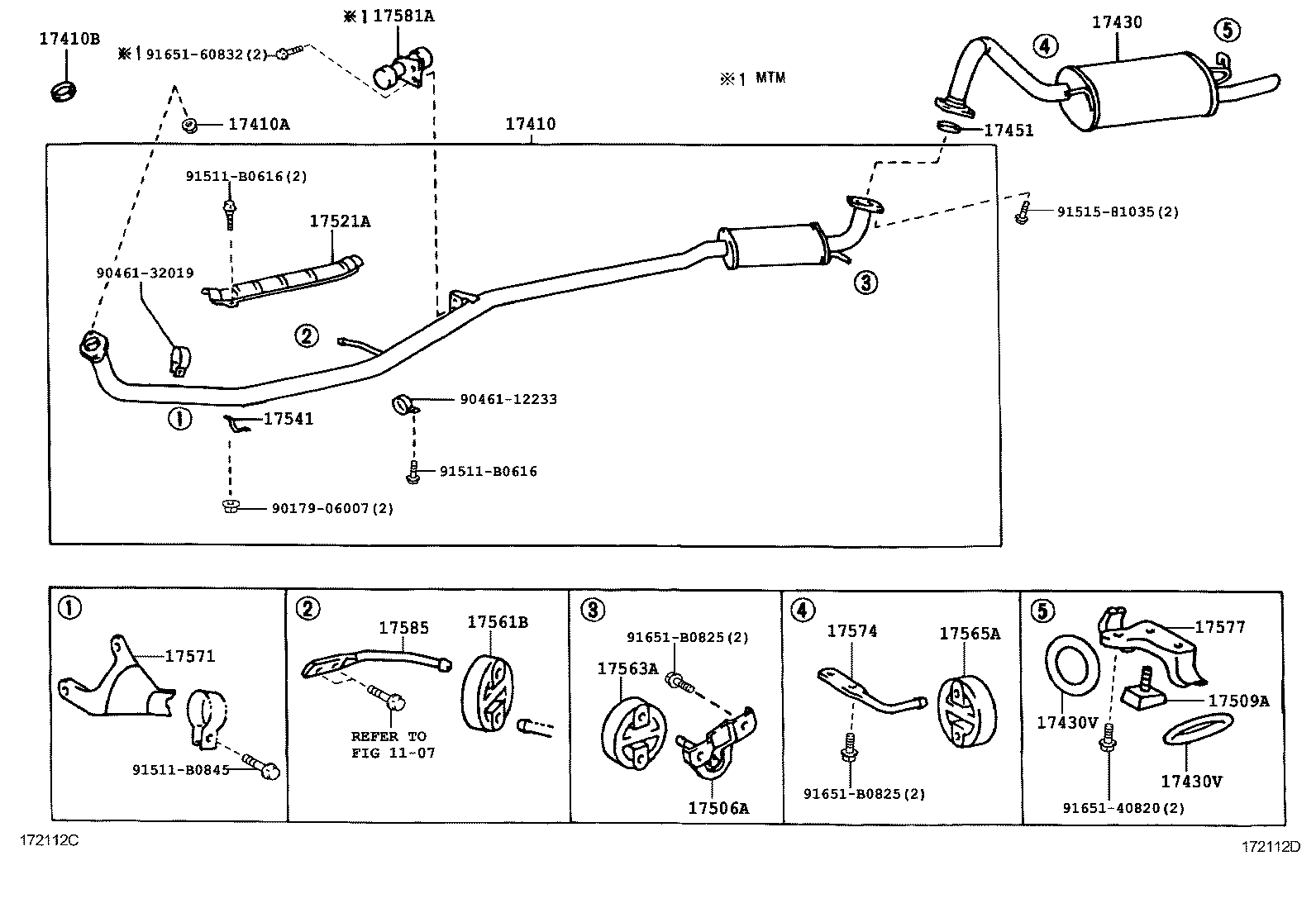

 CROWN COMFORT |  EXHAUST PIPE ** Refer Fig 17410 - PIPE ASSY, EXHAUST, FRONT 17410A - NUT, EXHAUST PIPE SET STUD BOLT 17410B - GASKET, EXHAUST PIPE 17430 - PIPE ASSY, EXHAUST, TAIL 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) 17451 - GASKET, EXHAUST PIPE 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 17541 - STAY, EXHUST PIPE PROTECTOR, NO.1 17561B - SUPPORT, EXHAUST PIPE, NO.1 17563A - SUPPORT, EXHAUST PIPE, NO.3 17565A - SUPPORT, EXHAUST PIPE, NO.4 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 17581A - DAMPER, EXHAUST PIPE 17585 - HANGER, EXHAUST PIPE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
