TOYOTA HILUX KZN165R-KRMSTQ3 / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

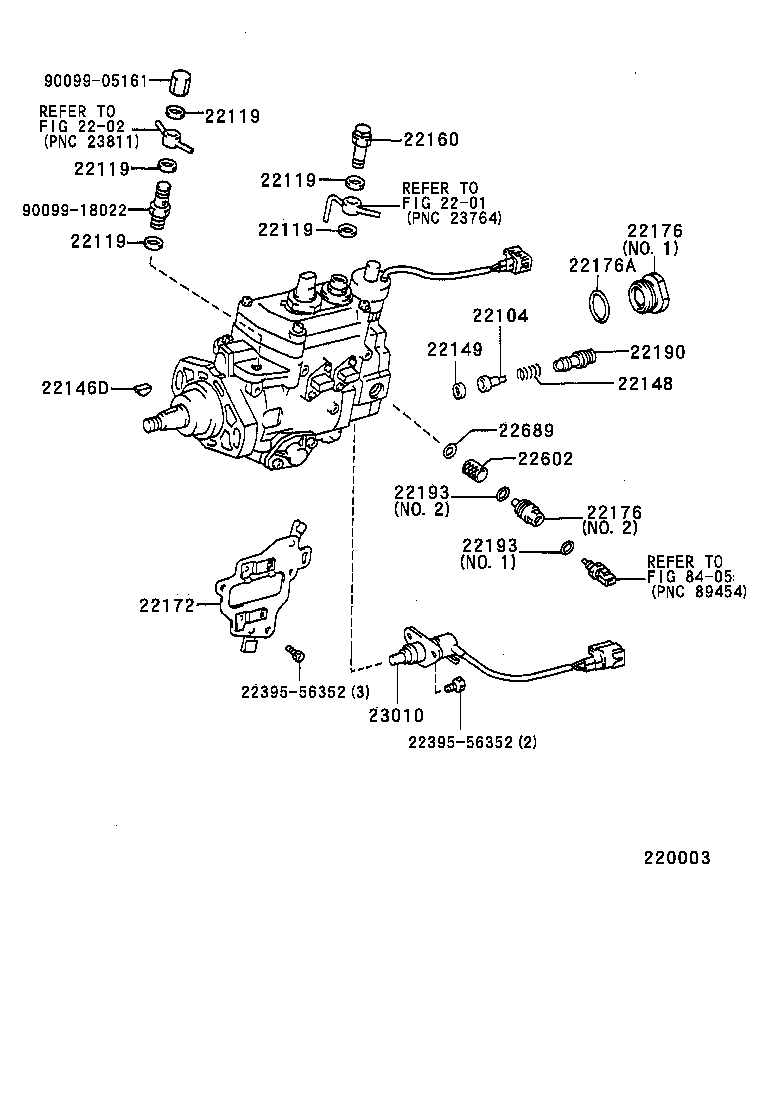

INJECTION PUMP BODY

(9909-0009)1KZTE..KZN165..SR..ARL

HILUX | INJECTION PUMP BODY ** Refer Fig ** Refer Fig 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22146D - KEY(FOR DRIVE GEAR) 22148 - SPRING, DELIVERY VALVE 22149 - GASKET, DELIVERY VALVE 22160 - SCREW SUB-ASSY, OVERFLOW 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID 22176 - PLUG, DISTRIBUTIVE HEAD 22176 - PLUG, DISTRIBUTIVE HEAD 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) 22190 - VALVE SUB-ASSY, SNUBBER 22193 - RING, O(FOR LEVER CONNECTING PIN) 22193 - RING, O(FOR LEVER CONNECTING PIN) ** Std Part ** Std Part ** Std Part 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP 22689 - WASHER(FOR SWIVEL NIPPLE) 23010 - VALVE ASSY, TIMER CONTROL ** Refer Fig ** Std Part ** Std Part
