FUEL INJECTION SYSTEM

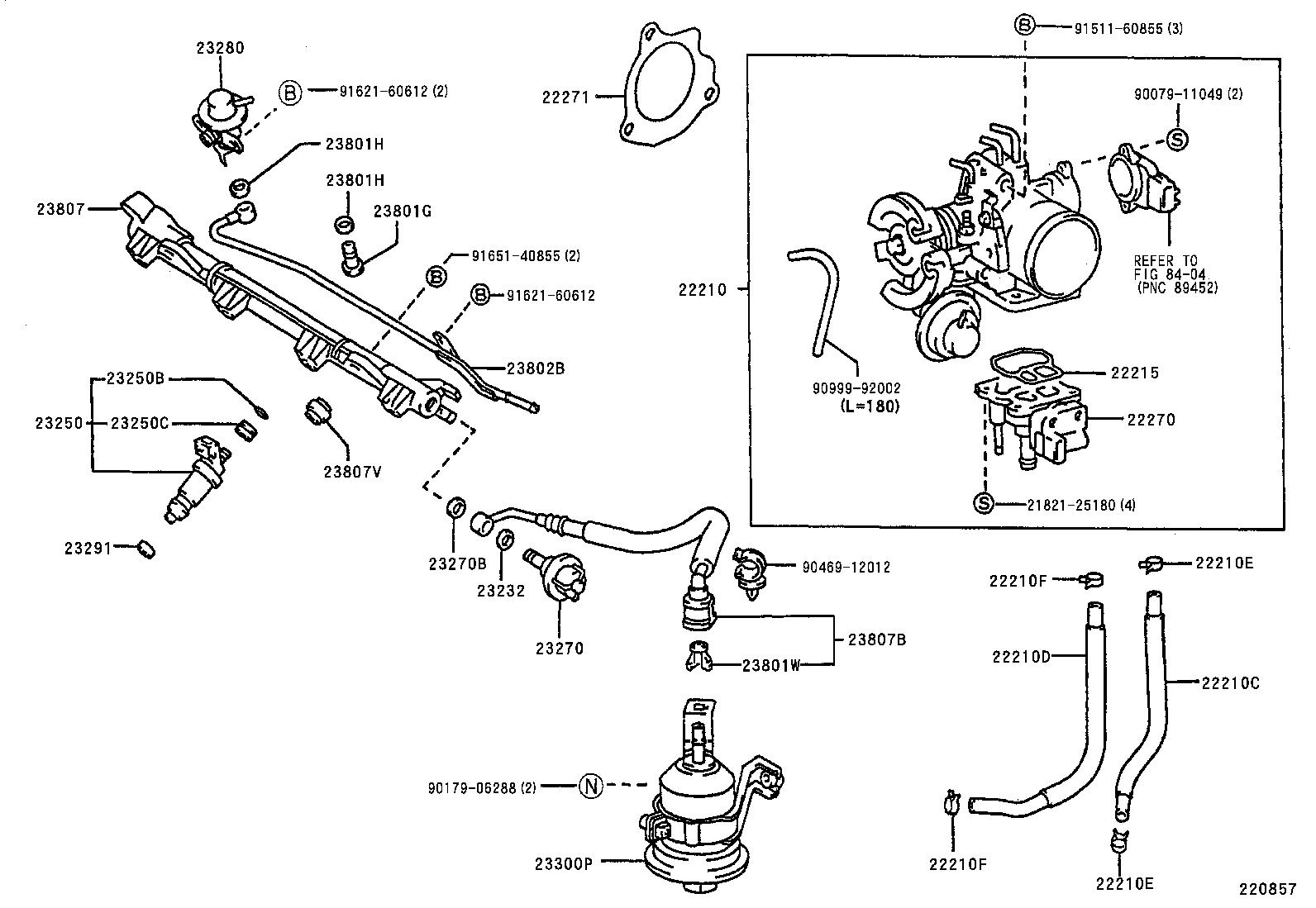

ILLUST NO. 1 OF 2(9908- )

PICNIC | FUEL INJECTION SYSTEM ** Std Part 22210 - BODY ASSY, THROTTLE 22210C - HOSE, WATER BY-PASS, NO.1 22210D - HOSE, WATER BY-PASS, NO.2 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22215 - GASKET, THROTTLE BODY COVER 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 23232 - GASKET(FOR FUEL PUMP HOSE) 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23291 - INSULATOR, INJECTOR VIBRATION 23300P - FILTER, FUEL(FOR EFI) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801W - CLIP, FUEL TUBE CONNECTOR 23802B - PIPE SUB-ASSY, FUEL, NO.2 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807B - HOSE, FUEL DELIVERY PIPE 23807V - SPACER, NO.1(FOR DELIVERY PIPE) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
