TOYOTA PRIUS NHW11R-AEEEBW / ELECTRICAL / HV INVERTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

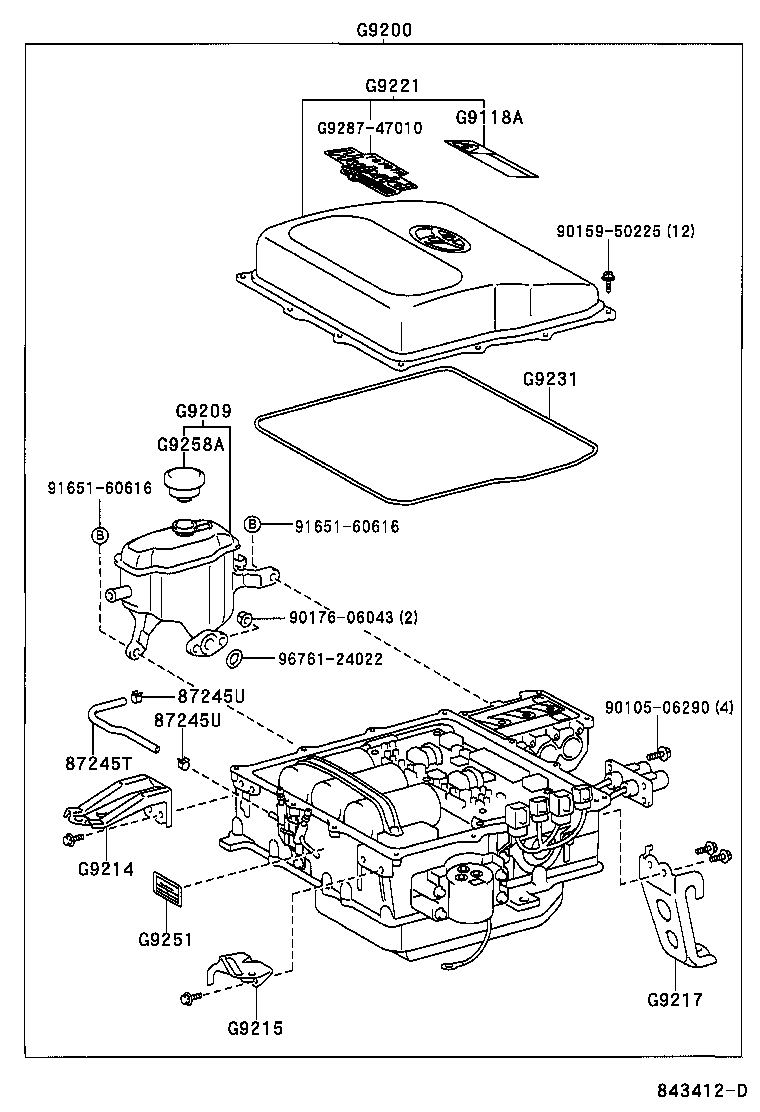

HV INVERTER

ILLUST NO. 1 OF 2(0005- )

PRIUS | HV INVERTER 87245T - HOSE, INVERTER WATER, NO.2 87245U - CLAMP OR CLIP (FOR WATER HOSE) 87245U - CLAMP OR CLIP (FOR WATER HOSE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9118A - LABEL, ELECTRIC VEHICLE UNIT CONTROLLER CAUTION, NO.1 G9200 - INVERTER ASSY, W/CONVERTER G9209 - TANK SUB-ASSY, INVERTER RESERVE G9214 - BRACKET, INVERTER, NO.1 G9215 - BRACKET, INVERTER, NO.2 G9217 - BRACKET, INVERTER, NO.4 G9221 - COVER, INVERTER G9231 - GASKET, INVERTER COVER G9251 - SEAT, INVERTER NAME G9258A - CAP, INVERTER RESERVE TANK ** Std Part
