TOYOTA AVALON MCX20L-AEPNKV / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

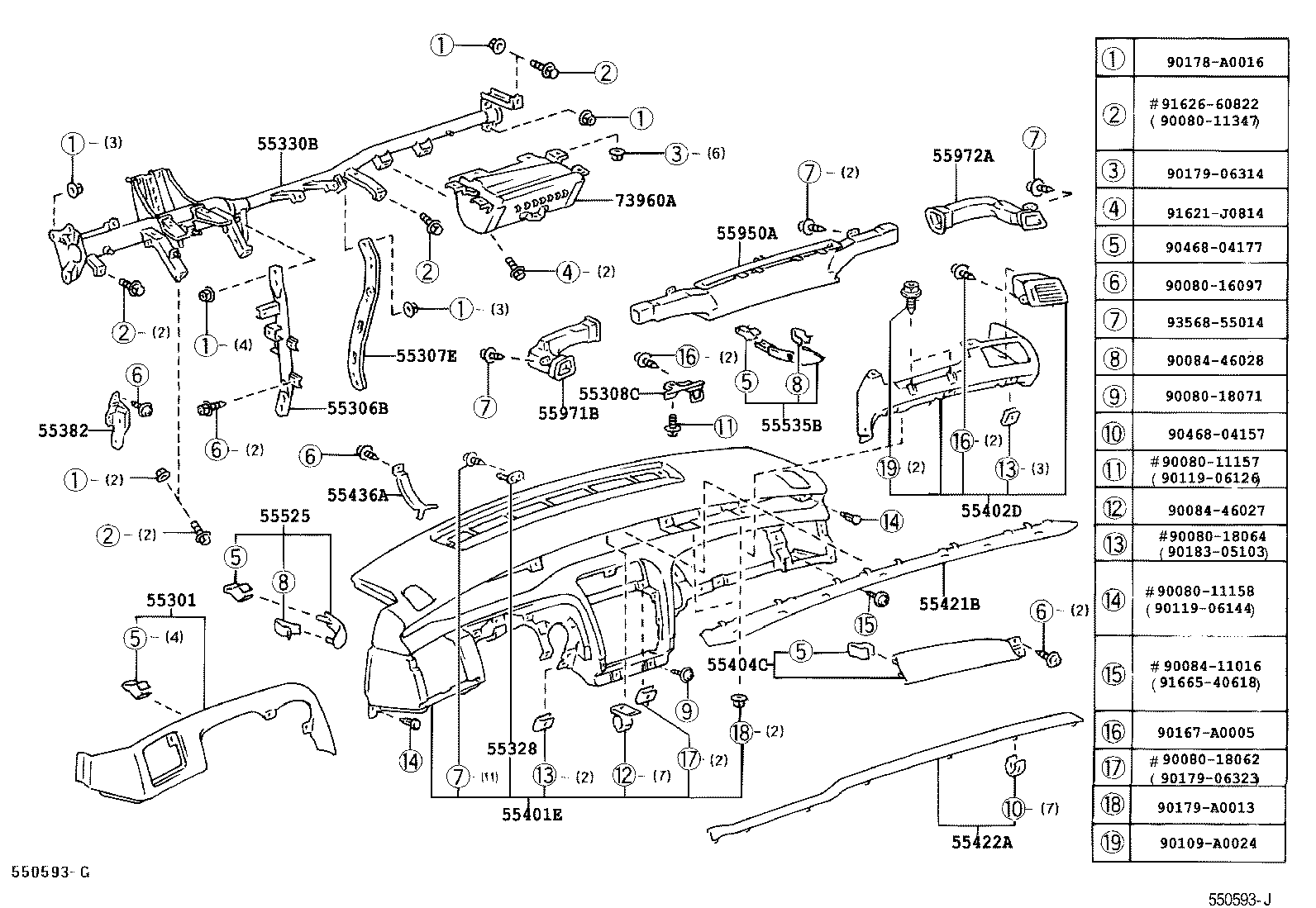

ILLUST NO. 1 OF 2(9908- )

AVALON | INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL 55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER 55328 - PIN, INSTRUMENT PANEL, NO.1 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH 55525 - COVER, SPEAKER HOLE, NO.1 55535B - COVER, SPEAKER HOLE, NO.2 55950A - NOZZLE ASSY, DEFROSTER 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
