TOYOTA COASTER CHINA BB53L-ZCMEU / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(0012-0310)BB53

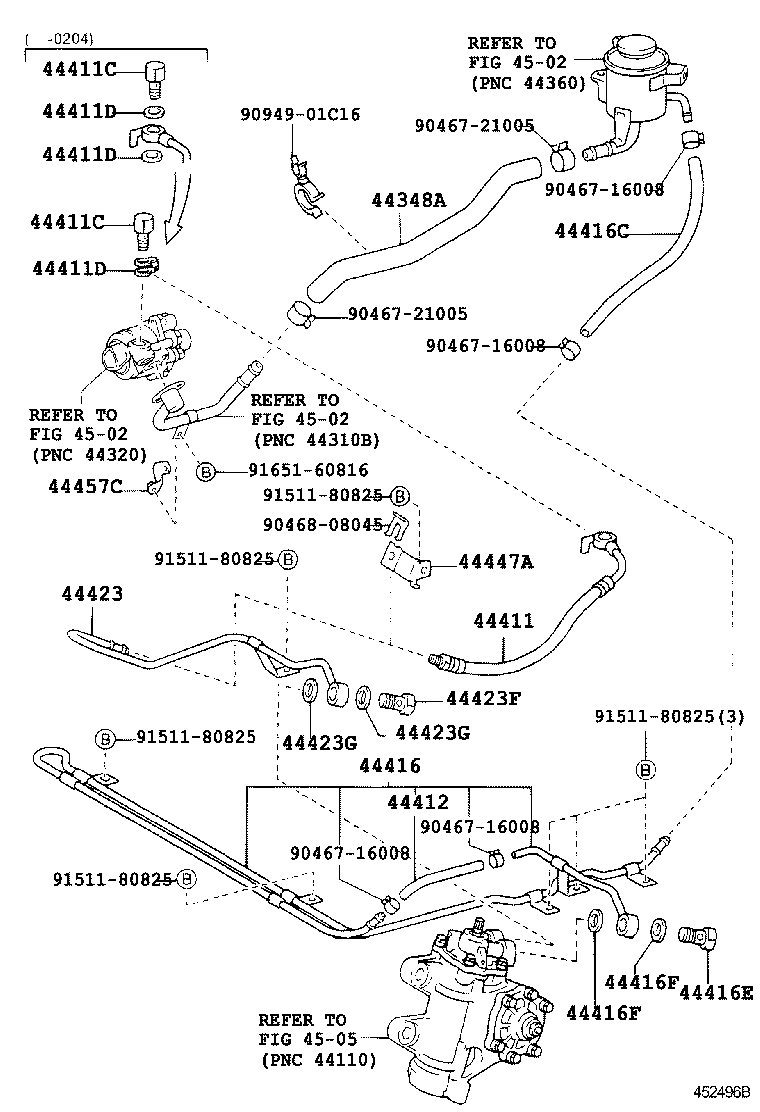

COASTER CHINA | POWER STEERING TUBE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44412 - HOSE, RETURN 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) 44416E - BOLT, UNION(FOR RETURN TUBE) 44416F - GASKET(FOR RETURN TUBE) 44416F - GASKET(FOR RETURN TUBE) 44423 - TUBE, OIL PUMP TO GEAR BOX 44423F - BOLT, UNION 44423G - GASKET, UNION BOLT 44423G - GASKET, UNION BOLT 44447A - BRACKET, HOSE SUPPORT, NO.1 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
