TOYOTA DYNA KDY230L-PSMBYW3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

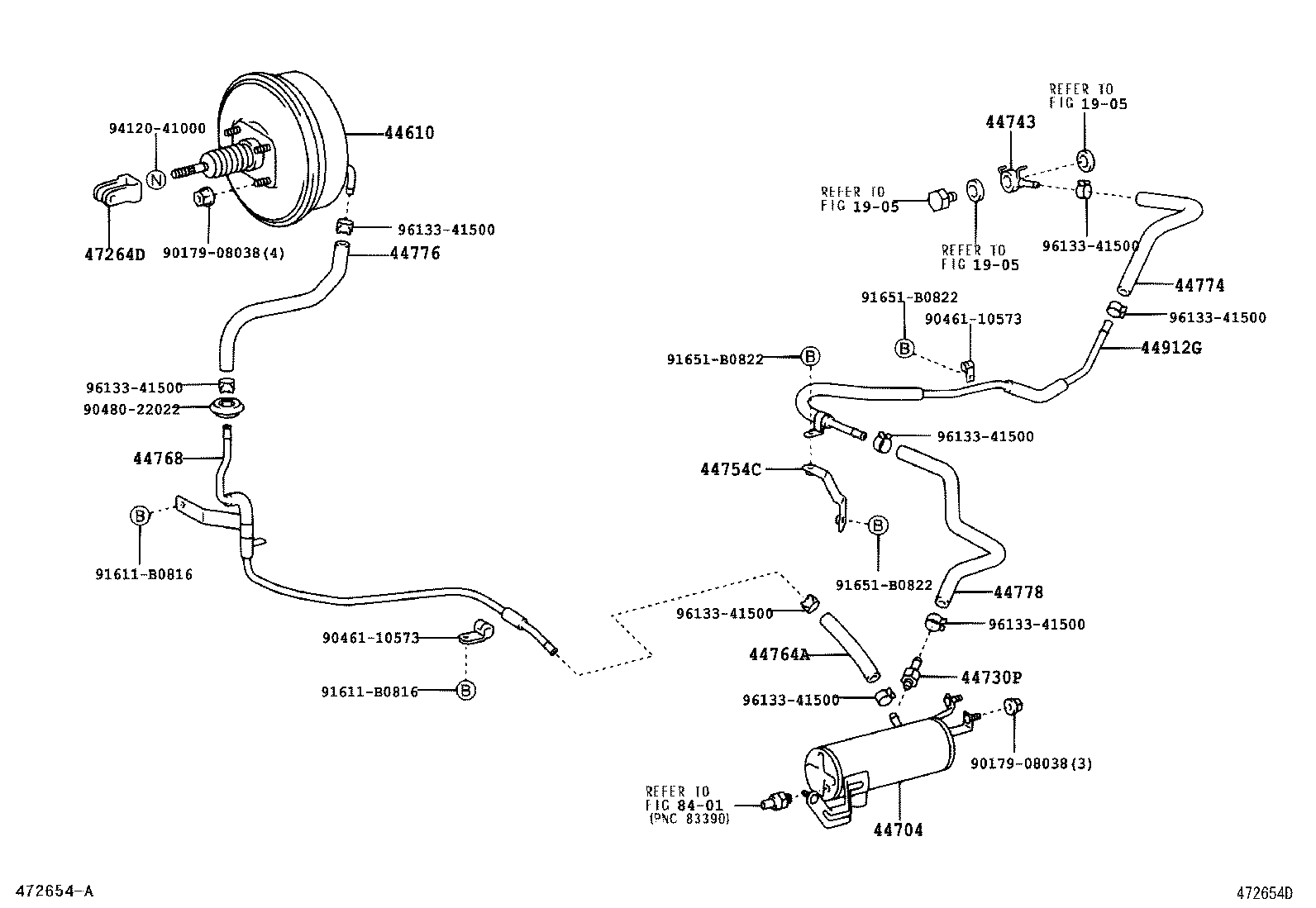

BRAKE BOOSTER VACUUM TUBE

(0108-0308)KDY220,230,250,260..LHD

 DYNA |  BRAKE BOOSTER VACUUM TUBE ** Refer Fig ** Refer Fig ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44704 - RESERVOIR SUB-ASSY, VACUUM 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44743 - UNION(FOR VACUUM PUMP) 44754C - BRACKET, VACUUM TUBE, NO.1 44764A - HOSE, BOOSTER VACUUM 44768 - TUBE, BOOSTER VACUUM 44774 - HOSE, UNION TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE 44912G - TUBE, 3 WAY TO MAGNETIC VALVE 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
