TOYOTA DYNA XZU300L-TKMMWR3 / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

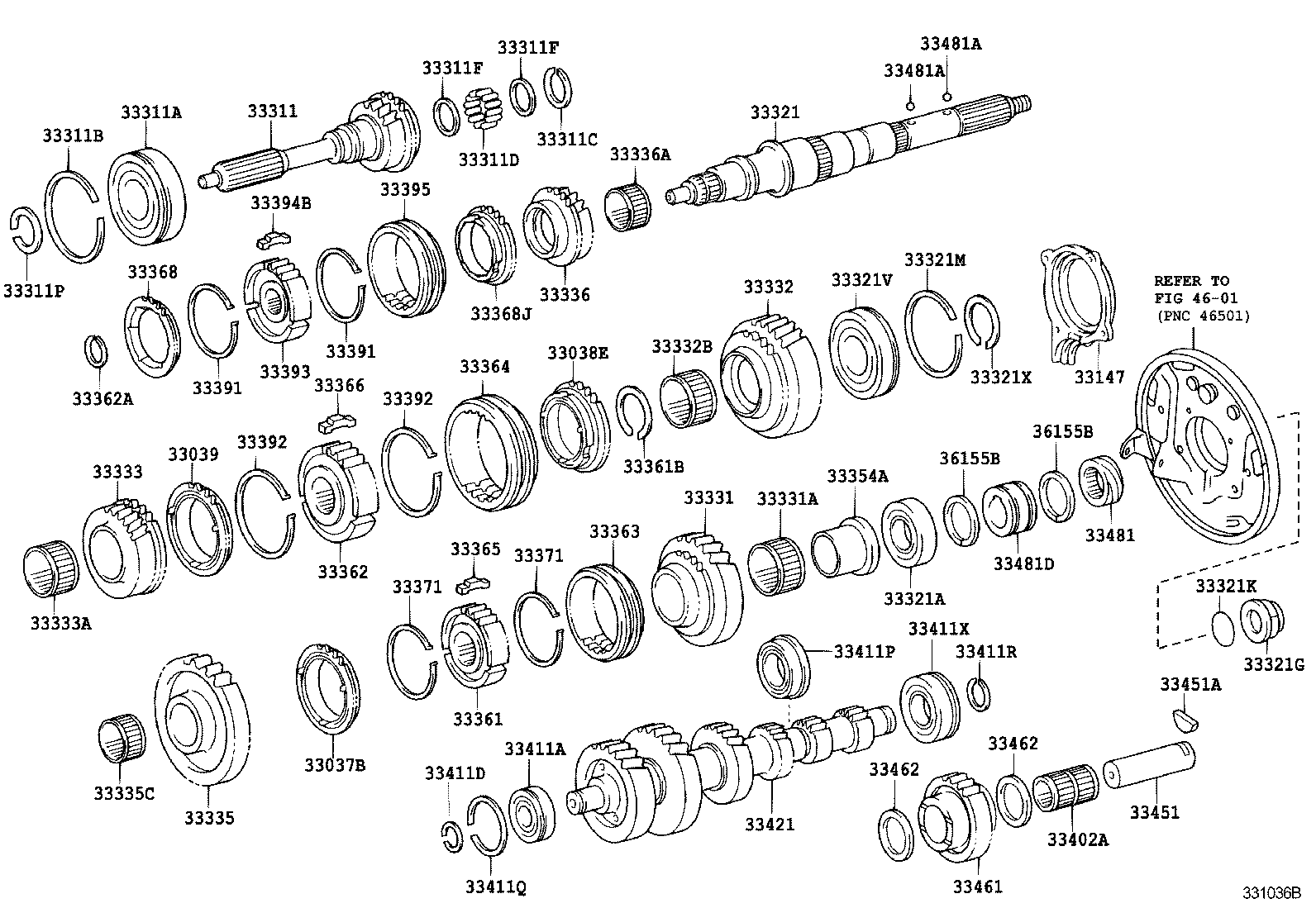

TRANSMISSION GEAR MTM

H350 (9907- )XZU300,320,330,34#

DYNA | TRANSMISSION GEAR MTM 33037B - RING SET, SYNCHRONIZER, NO.1 33038E - RING SET, SYNCHRONIZER, NO.2 33039 - RING SET, SYNCHRONIZER, NO.3 33147 - RETAINER, BEARING, CENTER 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) 33311D - BEARING, INPUT SHAFT 33311F - SPACER (FOR INPUT SHAFT) 33311F - SPACER (FOR INPUT SHAFT) 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT) 33321M - RING, SHAFT SNAP (FOR BEARING) 33321V - BEARING (FOR OUTPUT SHAFT CENTER) 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) 33331 - GEAR, REVERSE 33331A - BEARING (FOR REVERSE GEAR) 33332 - GEAR, 2ND 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) 33333 - GEAR, 3RD 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) 33335 - GEAR, 1ST 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33336 - GEAR, 5TH 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) 33354A - RACE, REVERSE GEAR BEARING, INNER 33361 - HUB, TRANSMISSION CLUTCH, NO.1 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) 33362 - HUB, TRANSMISSION CLUTCH, NO.2 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) 33363 - SLEEVE, TRANSMISSION HUB, NO.1 33364 - SLEEVE, TRANSMISSION HUB, NO.2 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33368 - RING, SYNCHRONIZER, NO.2 33368J - RING, SYNCHRONIZER (FOR 5TH GEAR) 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 33393 - HUB, TRANSMISSION CLUTCH, NO.3 33394B - KEY, SYNCHROMESH SHIFTING, NO.3 33395 - SLEEVE, TRANSMISSION HUB, NO.3 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 33411P - BEARING, COUNTER SHAFT CENTER 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 33411R - RING, SNAP, COUNTER GEAR REAR BEARING 33411X - BEARING, RADIAL BALL 33421 - GEAR, COUNTER 33451 - SHAFT, REVERSE IDLER GEAR 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) 33461 - GEAR, REVERSE IDLER 33462 - WASHER, REVERSE IDLER THRUST 33462 - WASHER, REVERSE IDLER THRUST 33481 - GEAR, SPEEDOMETER DRIVE (MTM) 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) 36155B - RING, TRANSFER OIL SEAL 36155B - RING, TRANSFER OIL SEAL ** Refer Fig
