TOYOTA DYNA XZU300L-TKMMWR3 / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

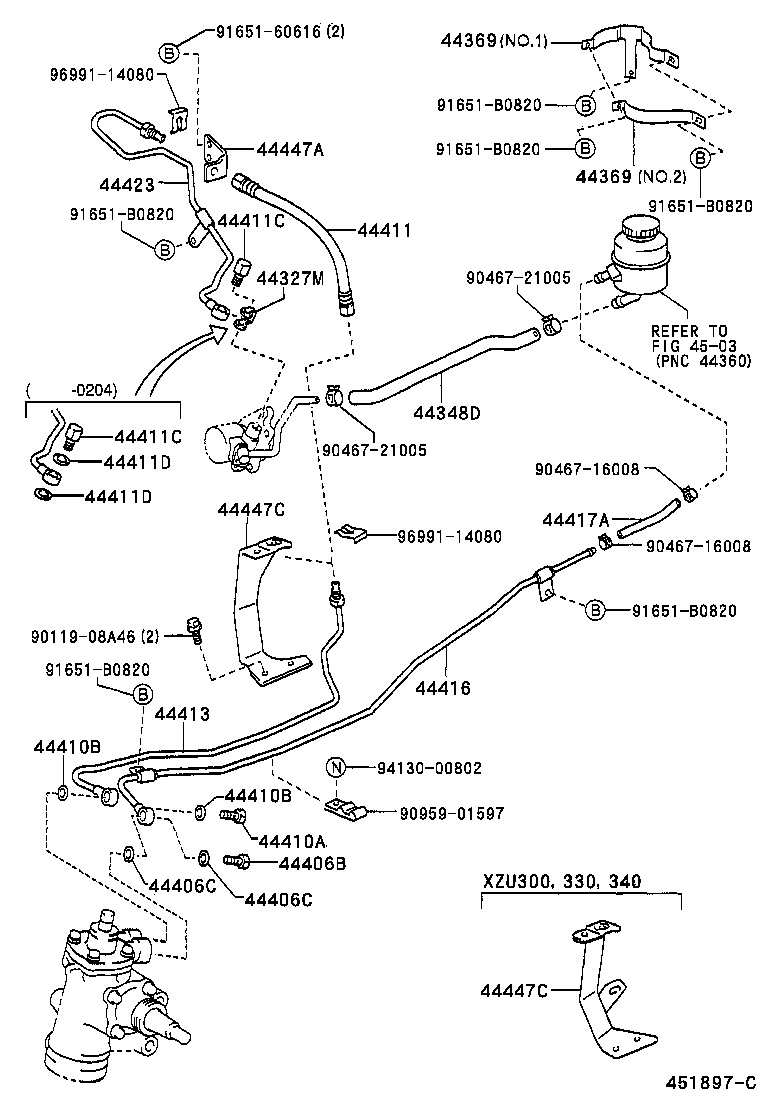

POWER STEERING TUBE

(9907- )XZU300,320,330,340

DYNA | POWER STEERING TUBE 44327M - GASKET, PRESSURE PORT, NO.2 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 44369 - BRACKET, OIL RESERVOIR, NO.1 44369 - BRACKET, OIL RESERVOIR, NO.1 44406B - BOLT, UNION(FOR RETURN TUBE) 44406C - GASKET(FOR RETURN TUBE) 44406C - GASKET(FOR RETURN TUBE) 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44413 - TUBE, PRESSURE FEED, NO.1 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2) 44423 - TUBE, OIL PUMP TO GEAR BOX 44447A - BRACKET, HOSE SUPPORT, NO.1 44447C - BRACKET, HOSE SUPPORT NO.2 44447C - BRACKET, HOSE SUPPORT NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
