TOYOTA PICNIC AVENSIS VERSO CLM20R-ANMDYW / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

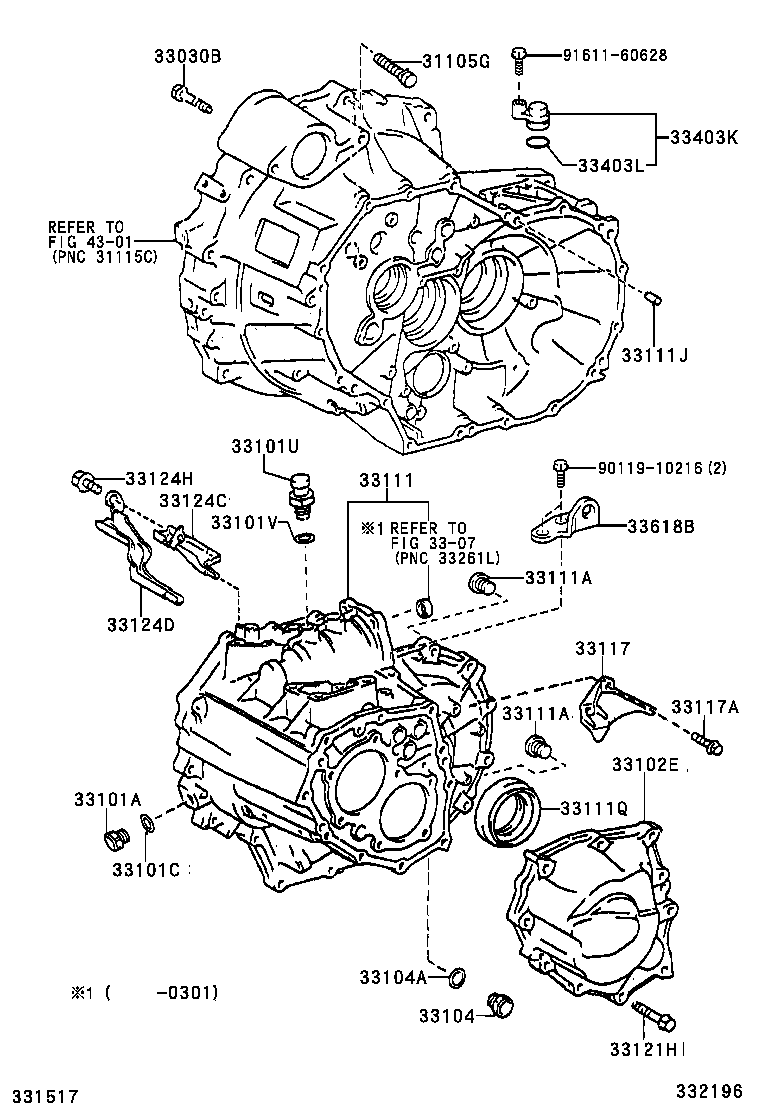

CLUTCH HOUSING TRANSMISSION CASE MTM

E355 (0105- )CLM20

PICNIC AVENSIS VERSO | CLUTCH HOUSING TRANSMISSION CASE MTM 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) ** Refer Fig 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) 33102E - COVER SUB-ASSY, MANUAL TRANSMISSION CASE 33104 - PLUG SUB-ASSY, DRAIN(MTM) 33104A - GASKET, DRAIN PLUG(MTM) 33111 - CASE, MANUAL TRANSMISSION 33111A - PLUG, MANUAL TRANSMISSION CASE 33111A - PLUG, MANUAL TRANSMISSION CASE 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) 33117 - PROTECTOR, MANUAL TRANSMISSION CASE 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) 33124C - PIPE, OIL RECEIVER, NO.1(MTM) 33124D - PIPE, OIL RECEIVER, NO.2(MTM) 33124H - BOLT(FOR OIL RECEIVER PIPE) 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE 33403L - RING, O 33618B - SUPPORT, SELECTING BELLCRANK ** Refer Fig ** Std Part ** Std Part
