TOYOTA PICNIC AVENSIS VERSO CLM20R-ANMDYW / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

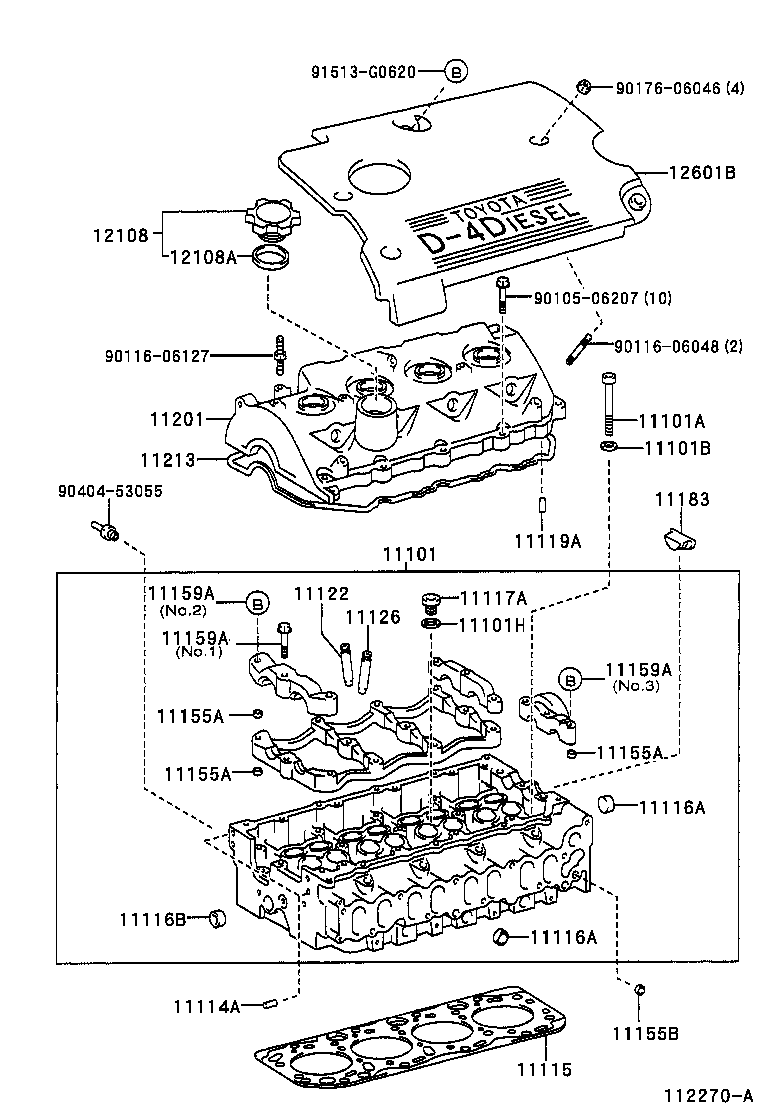

CYLINDER HEAD

(0105- )1CDFTV

PICNIC AVENSIS VERSO | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11114A - PIN, STRAIGHT 11115 - GASKET, CYLINDER HEAD 11116A - PLUG, TIGHT, NO.1 11116A - PLUG, TIGHT, NO.1 11116B - PLUG, TIGHT, NO.2 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11119A - PIN, STRAIGHT, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11155A - PIN, RING W/HEAD 11155A - PIN, RING W/HEAD 11155A - PIN, RING W/HEAD 11155B - PIN, RING 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11183 - PLUG, SEMICIRCULAR 11201 - COVER SUB-ASSY, CYLINDER HEAD 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12601B - COVER SUB-ASSY, ENGINE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
