TOYOTA DYNA BU300R-TQMMWQ3 / BODY / ACCELERATOR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

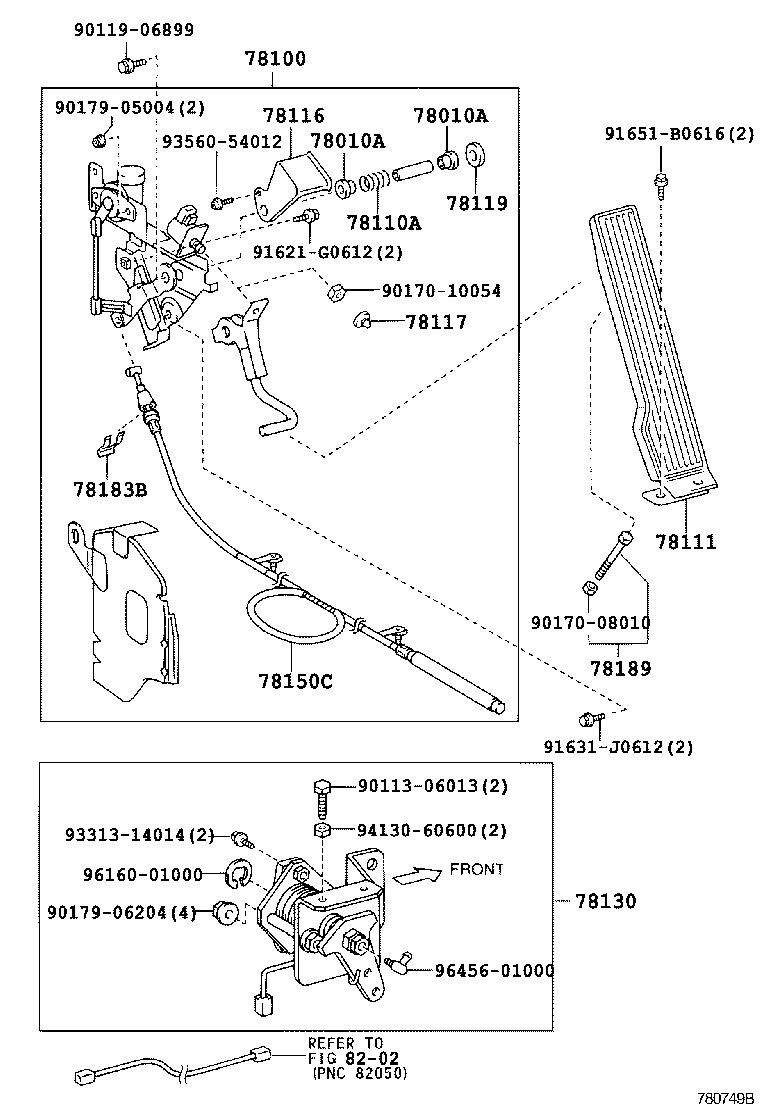

ACCELERATOR LINK

(0212-0312)BU300,340

 DYNA |  ACCELERATOR LINK 78010A - BUSH (FOR ACCELERATOR LINK) 78010A - BUSH (FOR ACCELERATOR LINK) 78100 - LINK ASSY, ACCELERATOR 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) 78111 - PEDAL, ACCELERATOR 78116 - COVER, ACCELERATOR PEDAL ROD 78117 - CUSHION (FOR ACCELERATOR ROD) 78119 - STOPPER, ACCELERATOR PEDAL ROD 78130 - BELLCRANK ASSY, ACCELERATOR 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE 78183B - CLAMP, ACCELERATOR CONTROL CABLE 78189 - BOLT, ACCELERATOR PEDAL STOPPER ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
