TOYOTA HILUX LN145R-TRMDS3 / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

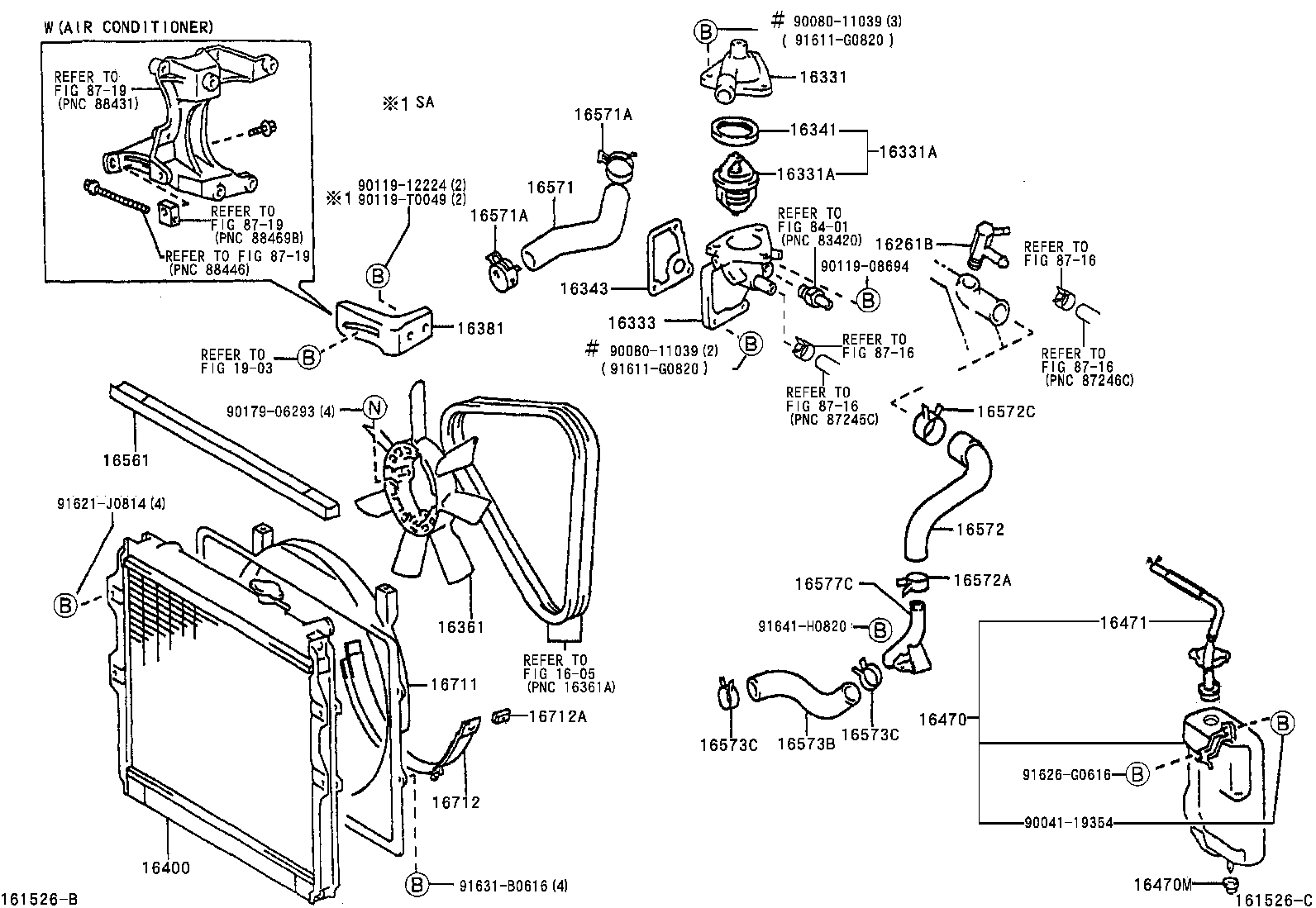

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(0203- )2L..LN145..RHD..IV3 ; (0203- )2L,5

 HILUX |  RADIATOR WATER OUTLET ** Refer Fig 16261B - UNION(FOR WATER BY-PASS HOSE) 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331A - THERMOSTAT 16333 - HOUSING, WATER OUTLET 16341 - GASKET, WATER OUTLET 16343 - GASKET, WATER OUTLET HOUSING 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16470 - TANK ASSY, RADIATOR RESERVE 16470M - GROMMET 16471 - CAP SUB-ASSY, RESERVE TANK 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16577C - PIPE, RADIATOR 16711 - SHROUD, FAN 16712 - SHROUD, FAN, NO.2 16712A - CLIP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
