TOYOTA DYNA WU300R-TKMLSD3 / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

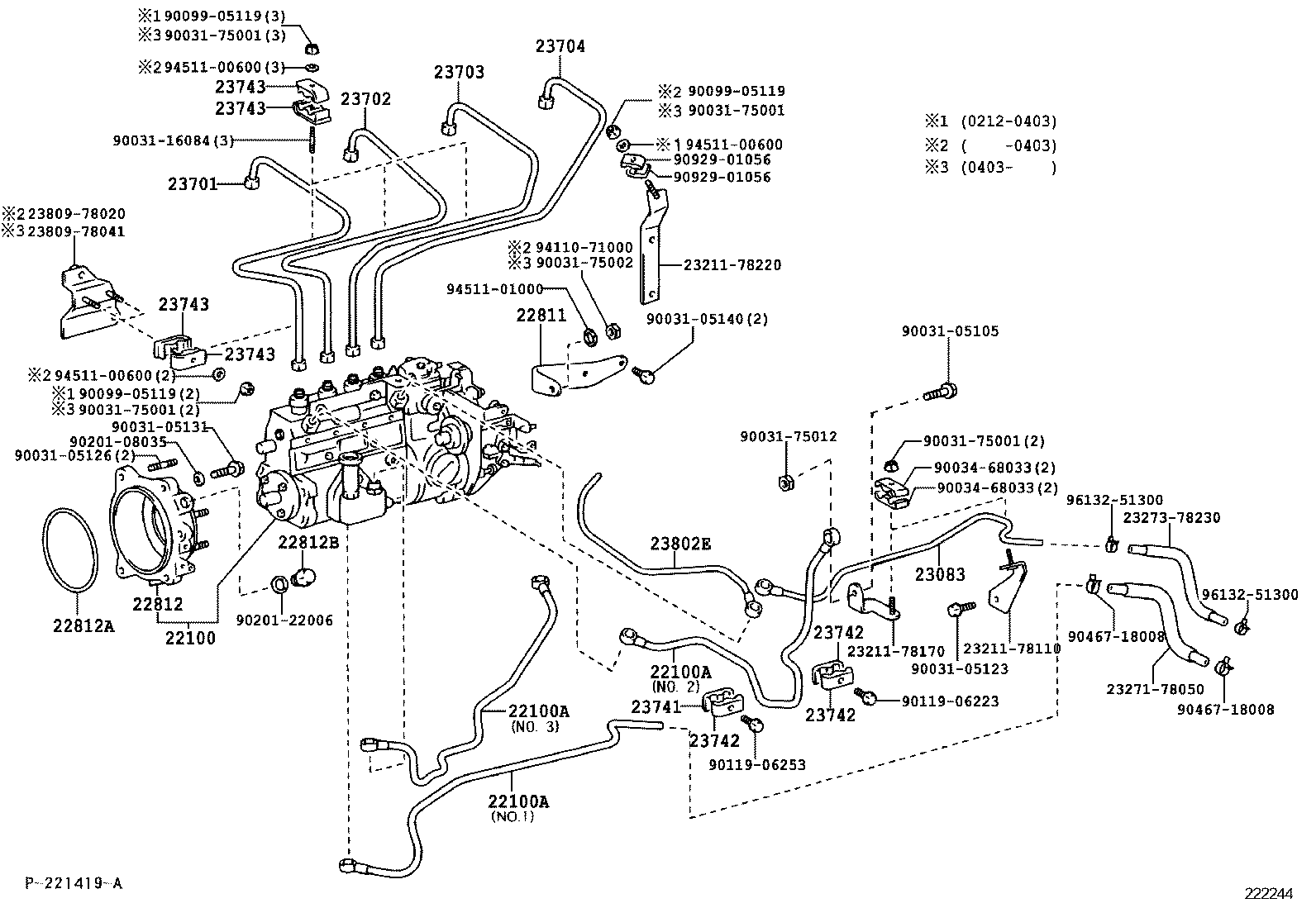

INJECTION PUMP ASSEMBLY

(0209-0612)W04D..WU300,340..IDN

 DYNA |  INJECTION PUMP ASSEMBLY 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22811 - STAY, INJECTION PUMP, NO.1 22812 - RETAINER, INJECTION PUMP 22812A - RING, O 22812B - PLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER) 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23741 - CLAMP, INJECTION PIPE, NO.1 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23743 - CLAMP, INJECTION PIPE, NO.3 23743 - CLAMP, INJECTION PIPE, NO.3 23743 - CLAMP, INJECTION PIPE, NO.3 23743 - CLAMP, INJECTION PIPE, NO.3 23802E - PIPE SUB-ASSY, FUEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
