TOYOTA DYNA XZU307L-TKMMBR3 / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

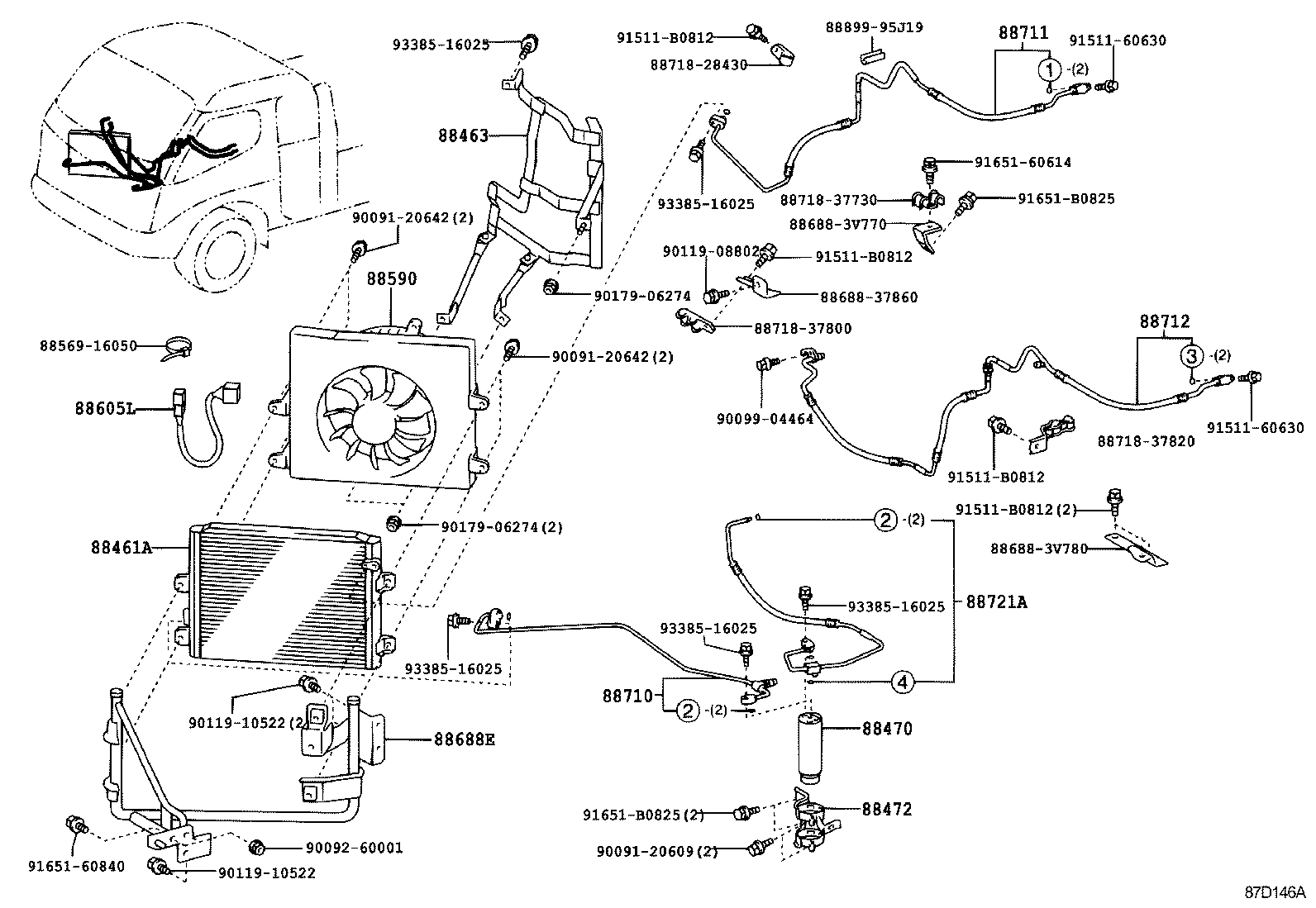

PIPING(DOP) ILLUST NO. 2 OF 3(0610-0812)XZU307,327,337,347

DYNA | HEATING AIR CONDITIONING COOLER PIPING 88461A - CORE, COOLER CONDENSER 88463 - BRACKET, COOLER CONDENSER, NO.1 88470 - RECEIVER & DRYER ASSY, COOLER 88472 - BRACKET, RECEIVER TANK, NO.1 ** Std Part 88590 - BLOWER ASSY, W/SHROUD 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER ** Std Part ** Std Part ** Std Part 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 88710 - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part 88721A - HOSE, LIQUID, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
