TOYOTA HIACE KDH212R-JEMDYN / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VANE PUMP RESERVOIR POWER STEERING

(0501- )KDH20#,212,22#

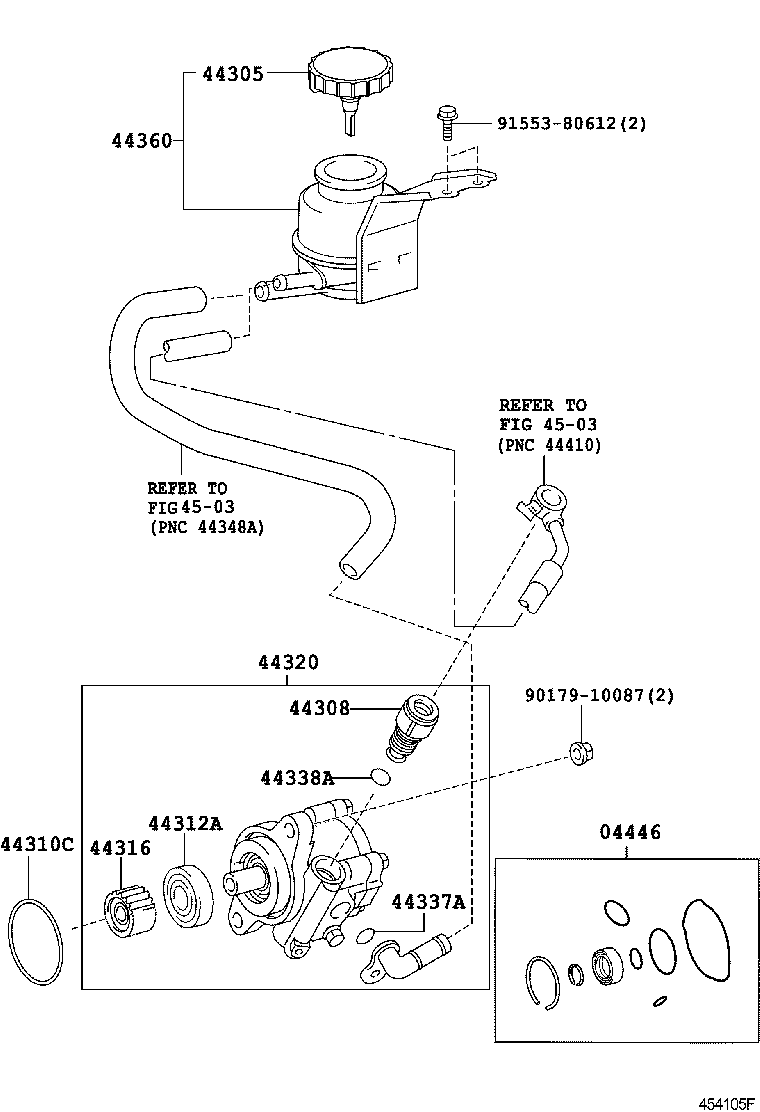

 HIACE |  VANE PUMP RESERVOIR POWER STEERING 04446 - GASKET KIT, POWER STEERING PUMP 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44308 - UNION SUB-ASSY, PRESSURE PORT 44310C - RING, O(FOR VANE PUMP) 44312A - BEARING(FOR VANE PUMP SHAFT) 44316 - GEAR, VANE PUMP 44320 - PUMP ASSY, VANE 44337A - RING, O(FOR POWER STEERING SUCTION PORT) 44338A - RING, O(FOR PRESSURE PORT UNION) 44360 - RESERVOIR ASSY, VANE PUMP OIL ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part
