TOYOTA LAND CRUISER 200 VDJ200L-GMMNZ / TOOL-ENGINE-FUEL / VENTILATION HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

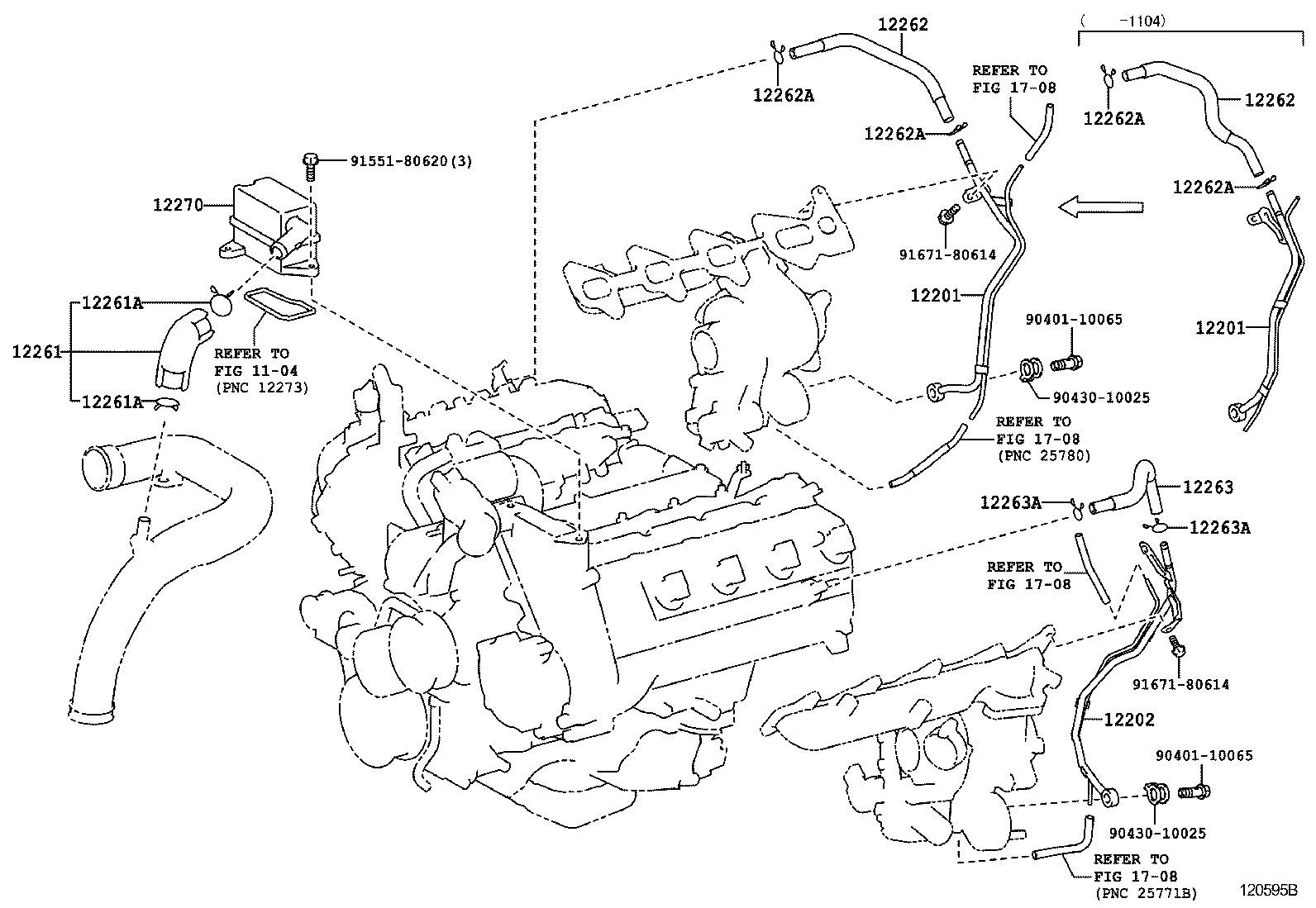

VENTILATION HOSE

(0709- )1VDFTV

 LAND CRUISER 200 |  VENTILATION HOSE ** Refer Fig 12201 - TUBE SUB-ASSY, VENTILATION 12201 - TUBE SUB-ASSY, VENTILATION 12202 - TUBE SUB-ASSY, VENTILATION, NO.2 12261 - HOSE, VENTILATION 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12262 - HOSE, VENTILATION, NO.2 12262 - HOSE, VENTILATION, NO.2 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12263 - HOSE, VENTILATION, NO.3 12263A - CLIP(FOR VENTILATION HOSE) 12263A - CLIP(FOR VENTILATION HOSE) 12270 - SEPARATOR ASSY, OIL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
