TOYOTA LAND CRUISER PRADO KDJ120R-GKFEYQ / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

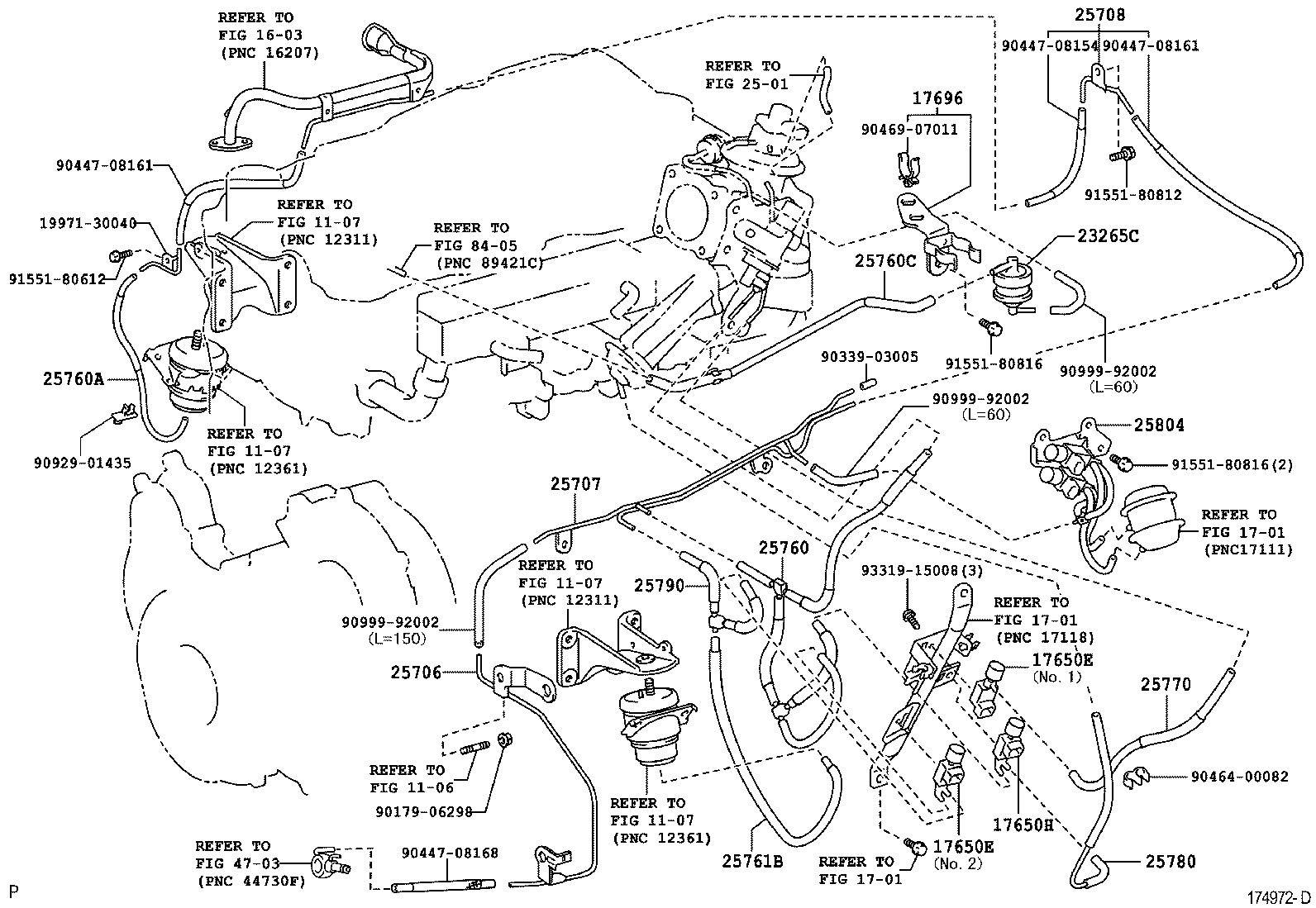

VACUUM PIPING

(0608- )1KDFTV

 LAND CRUISER PRADO |  VACUUM PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 17650E - VALVE, VACUUM SWITCHING 17650E - VALVE, VACUUM SWITCHING 17650H - VALVE, VACUUM SWITCHING 17696 - BRACKET, GAS FILTER  ** Std Part 23265C - FILTER, GAS ** Refer Fig 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3 25760 - HOSE ASSY, VACUUM TRANSMITTING 25760A - HOSE ASSY, VACUUM TRANSMITTING 25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3 25761B - HOSE, VACCUM TRANSMITTING, NO.1 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3 25790 - HOSE ASSY, VACUUM TRANSMITTING, NO.4 25804 - VALVE SET, VACUUM CONTROL ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
