TOYOTA YARIS NCP92L-BEMRK / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CAMSHAFT VALVE

(0601- )

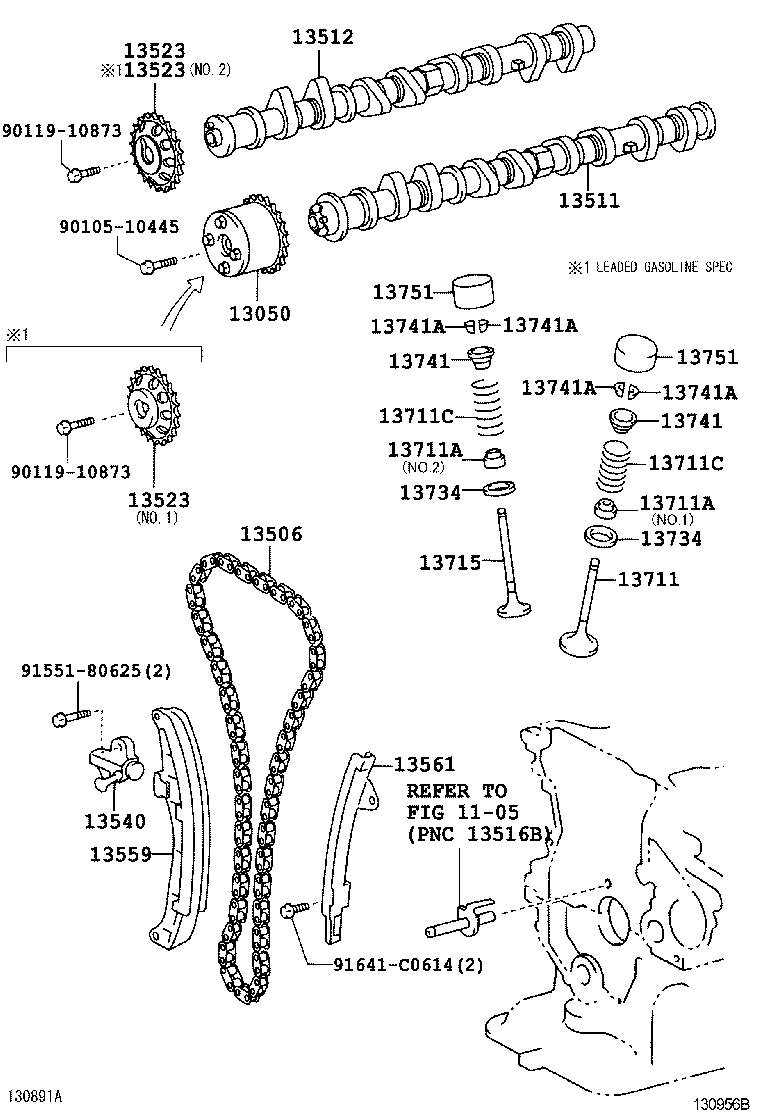

YARIS | CAMSHAFT VALVE ** Refer Fig 13050 - GEAR ASSY, CAMSHAFT TIMING 13506 - CHAIN SUB-ASSY 13511 - CAMSHAFT 13512 - CAMSHAFT, NO.2 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING 13540 - TENSIONER ASSY, CHAIN, NO.1 13559 - SLIPPER, CHAIN TENSIONER 13561 - DAMPER, CHAIN VIBRATION, NO.1 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711C - SPRING, COMPRESSION(FOR OUTER) 13711C - SPRING, COMPRESSION(FOR OUTER) 13715 - VALVE, EXHAUST 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13751 - LIFTER, VALVE 13751 - LIFTER, VALVE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
