TOYOTA AURIS UKP ADE150R-DHFDYN / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

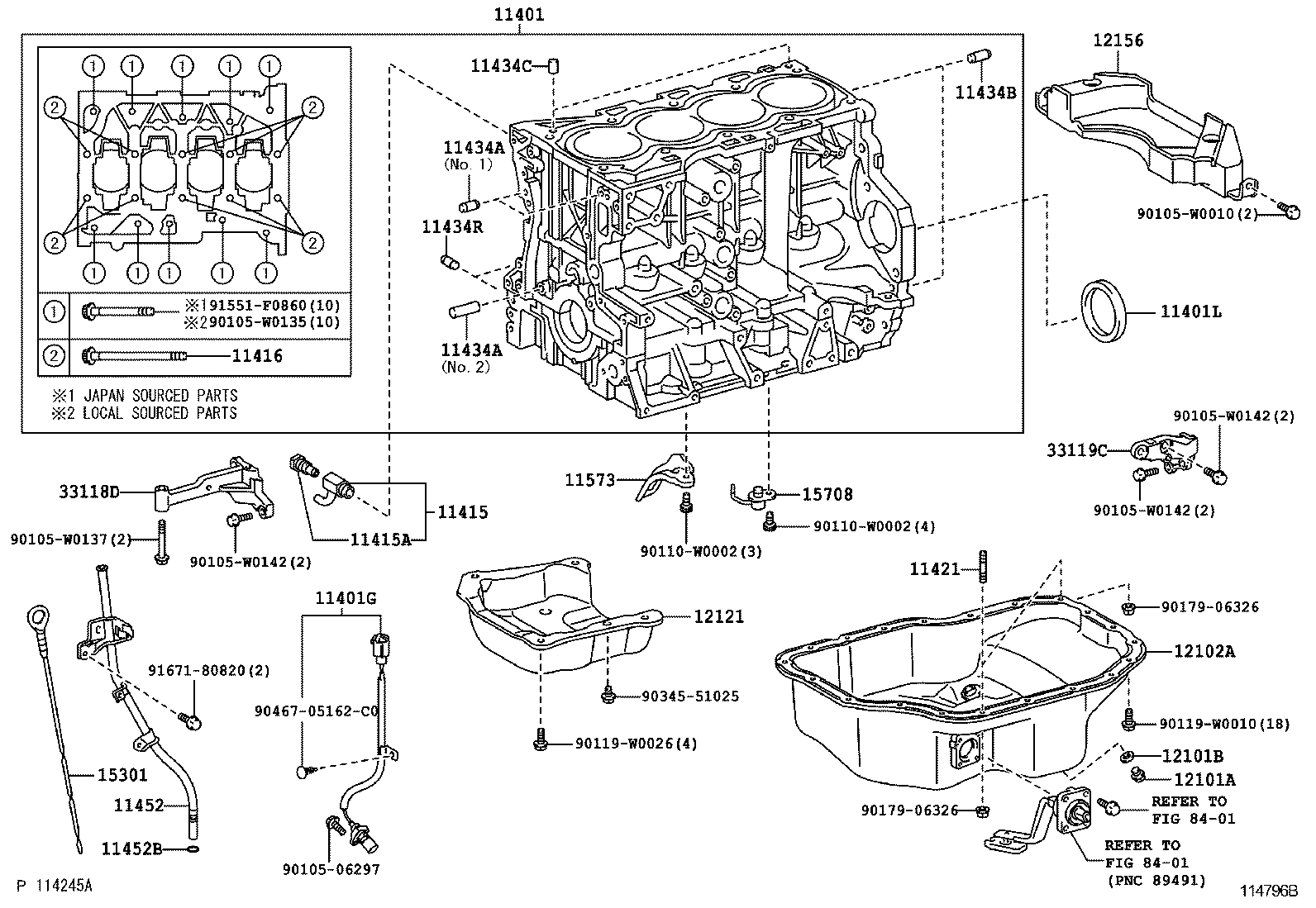

CYLINDER BLOCK

(0706-0903)1ADFTV

 AURIS UKP |  CYLINDER BLOCK 11401 - BLOCK SUB-ASSY, CYLINDER 11401G - SENSOR, CRANK POSITION 11401L - SEAL, ENGINE REAR OIL 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11421 - BOLT, STUD(FOR OIL PAN) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET) 11452 - GUIDE, OIL LEVEL GAGE 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 11573 - PLATE, OIL REFLECTOR 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12102A - PAN SUB-ASSY, OIL, NO.2 12121 - PLATE, OIL PAN BAFFLE, NO.1 12156 - INSULATOR, OIL PAN 15301 - GAGE SUB-ASSY, OIL LEVEL 15708 - NOZZLE SUB-ASSY, OIL, NO.1 33118D - PLATE, STIFFENER, RH 33119C - PLATE, STIFFENER, LH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
