HEATING AIR CONDITIONING COOLER PIPING

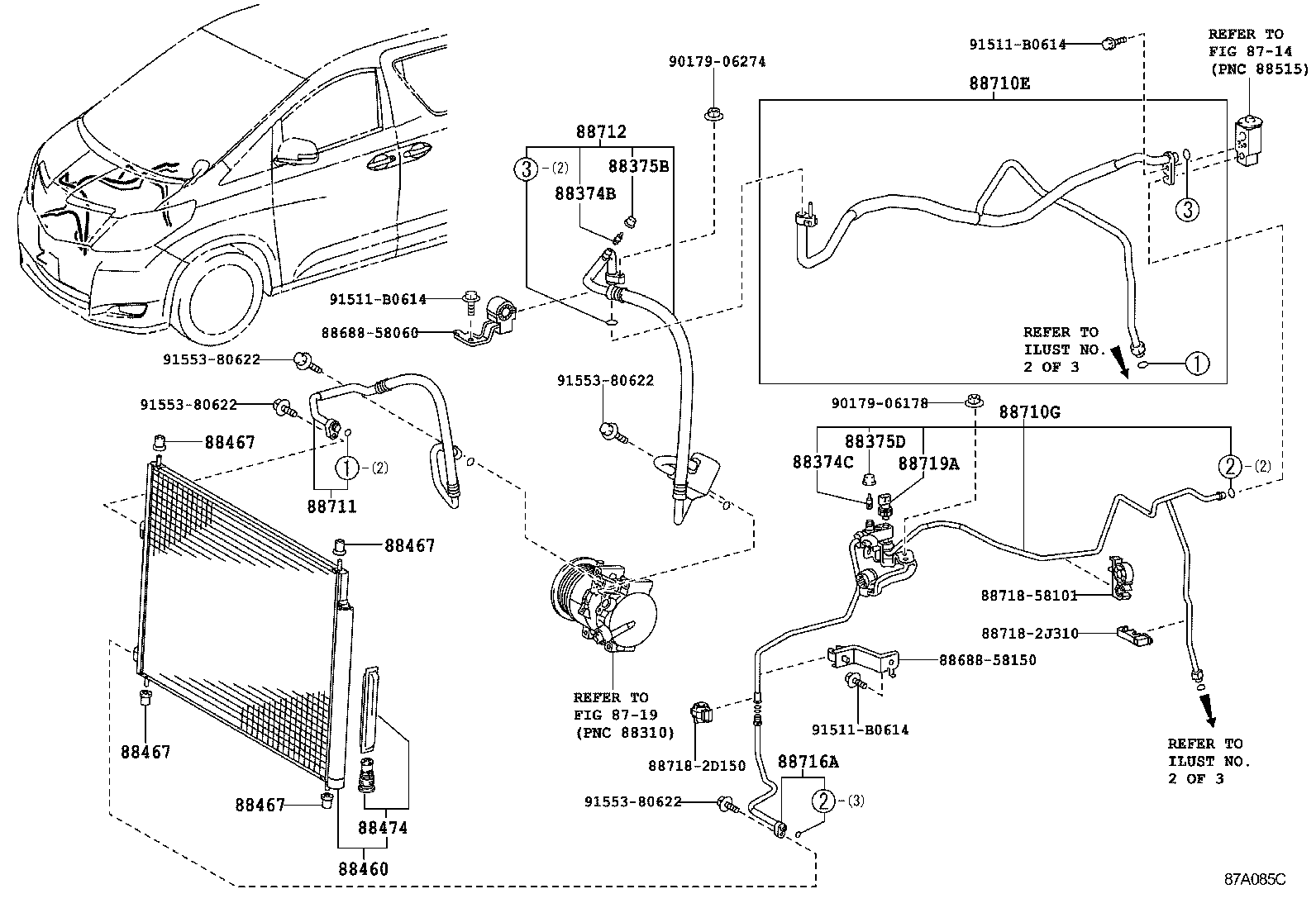

FRONT ILLUST NO. 1 OF 3(0906- )ANH20..RHD

 ALPHARD VELLFIRE HV |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88474 - DRYER, COOLER  ** Std Part  ** Std Part 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88710G - TUBE & ACCESSORY ASSY, AIRCONDITIONER, NO.2 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A  ** Std Part  ** Std Part  ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
