TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE SHAFT HUB

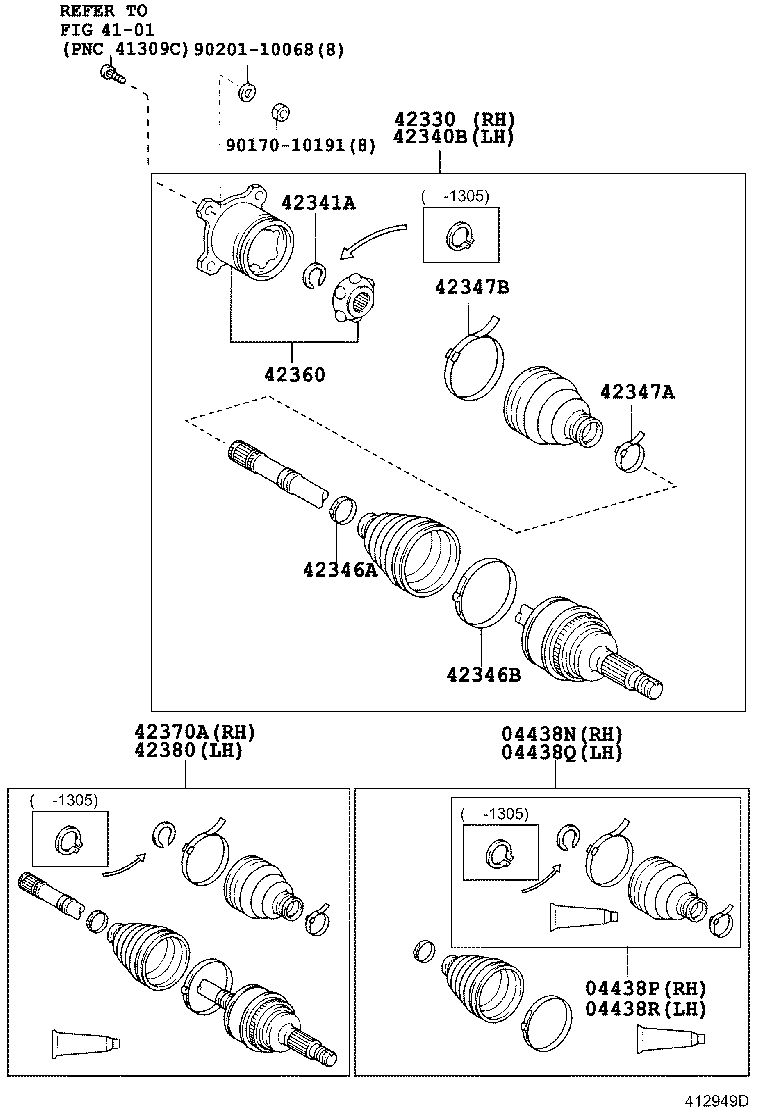

ILLUST NO. 1 OF 2(1110- )ATH20

ALPHARD VELLFIRE HV | REAR AXLE SHAFT HUB 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH 04438P - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH 04438R - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, LH ** Refer Fig 42330 - SHAFT ASSY, REAR DRIVE, RH 42340B - SHAFT ASSY, REAR DRIVE, LH 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH ** Std Part ** Std Part
