TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / TOOL-ENGINE-FUEL / EXHAUST PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

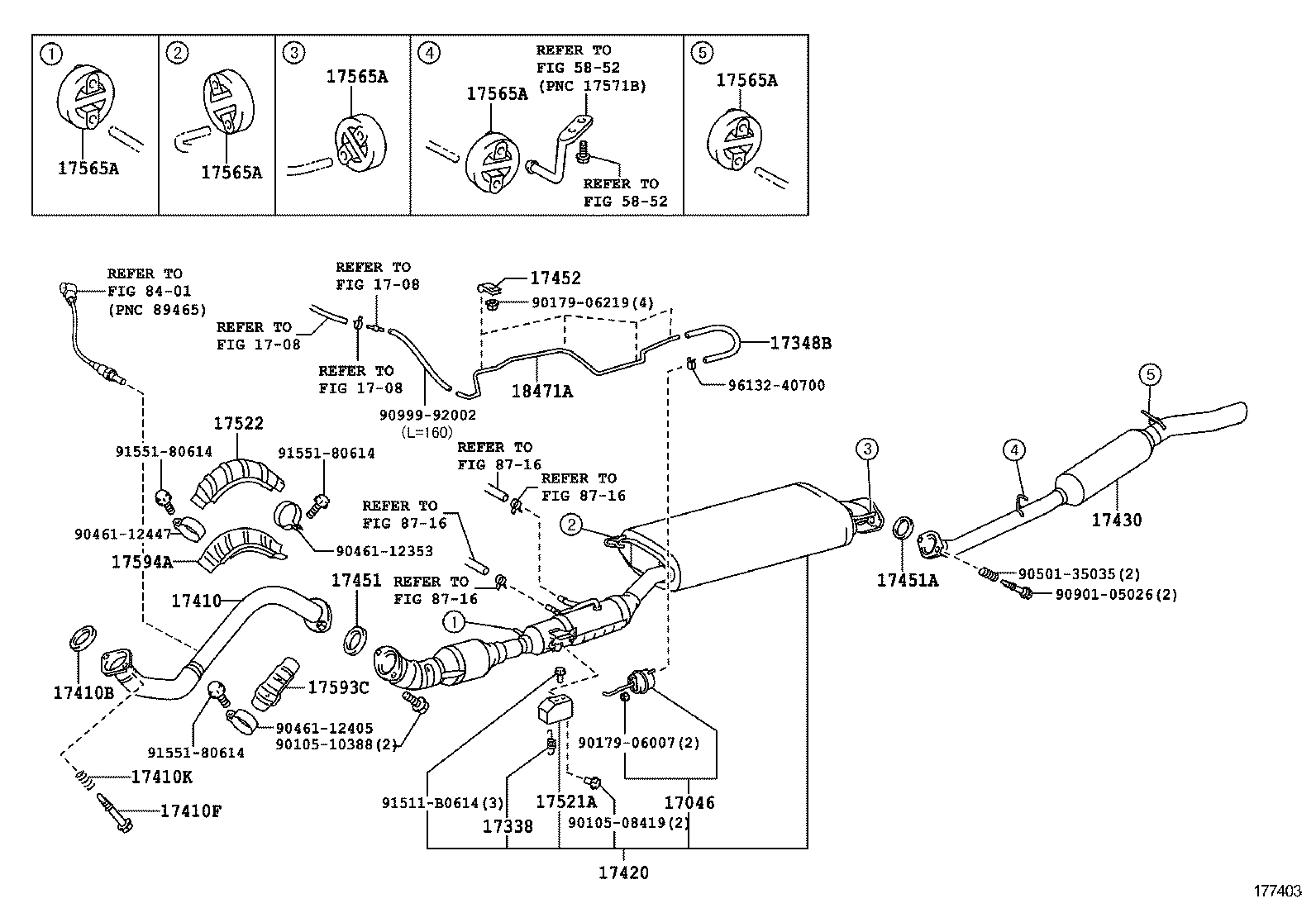

EXHAUST PIPE

(1112- )2AZFXE

ALPHARD VELLFIRE HV | EXHAUST PIPE 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL ** Refer Fig ** Refer Fig ** Refer Fig 17338 - SPRING, AIR CONTROL 17348B - HOSE, AIR, NO.8(FOR EXHAUST PIPE) 17410 - PIPE ASSY, EXHAUST, FRONT 17410B - GASKET, EXHAUST PIPE 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) 17410K - SPRING, EXHAUST PIPE 17420 - PIPE ASSY, EXHAUST, CENTER 17430 - PIPE ASSY, EXHAUST, TAIL 17451 - GASKET, EXHAUST PIPE 17451A - GASKET, EXHAUST PIPE, NO.2 17452 - CLAMP, EXHAUST PIPE 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2 17565A - SUPPORT, EXHAUST PIPE, NO.4 17565A - SUPPORT, EXHAUST PIPE, NO.4 17565A - SUPPORT, EXHAUST PIPE, NO.4 17565A - SUPPORT, EXHAUST PIPE, NO.4 17565A - SUPPORT, EXHAUST PIPE, NO.4 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2 18471A - PIPE, CONVERTER AIR SUCTION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
