TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

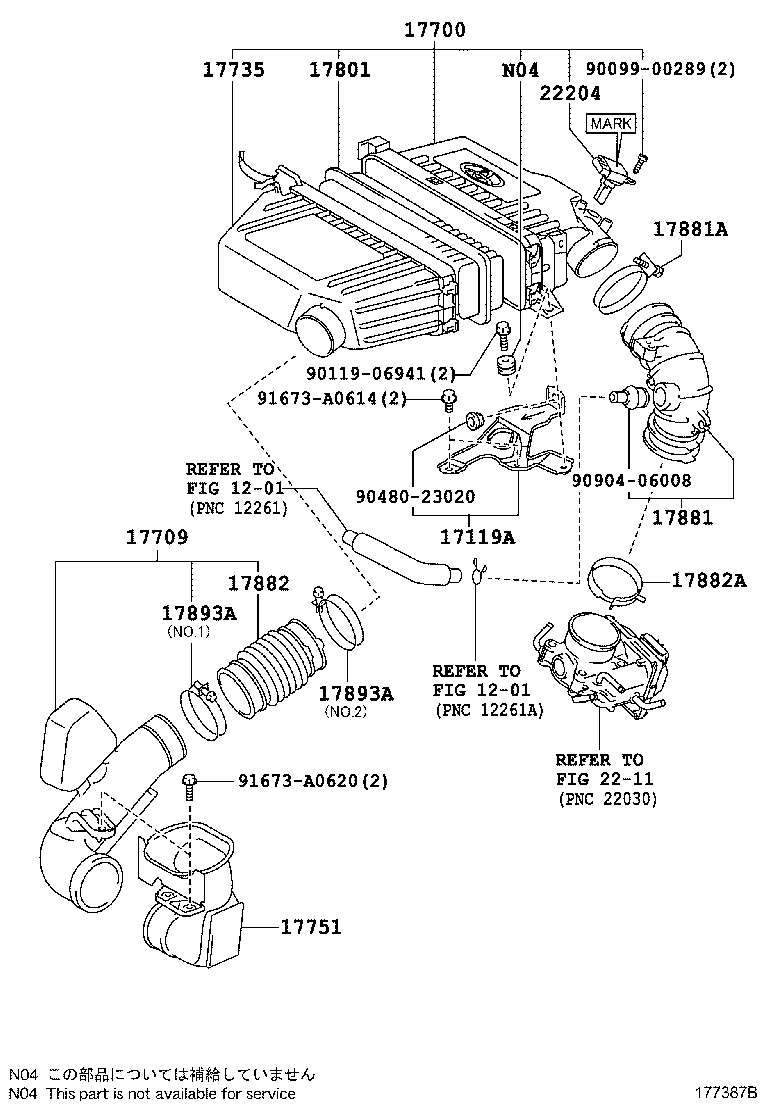

AIR CLEANER

(1112- )2AZFXE

 ALPHARD VELLFIRE HV |  AIR CLEANER ** Refer Fig ** Refer Fig 17119A - BRACKET, AIR CLEANER 17700 - CLEANER ASSY, AIR 17709 - INLET SUB-ASSY, AIR CLEANER 17735 - CAP, AIR CLEANER 17751 - INLET, AIR CLEANER, NO.1 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17893A - CLAMP, HOSE 17893A - CLAMP, HOSE ** Refer Fig 22204 - METER SUB-ASSY, INTAKE AIR FLOW  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
