TOYOTA ALPHARD VELLFIRE HV GGH20R-PFTQK / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

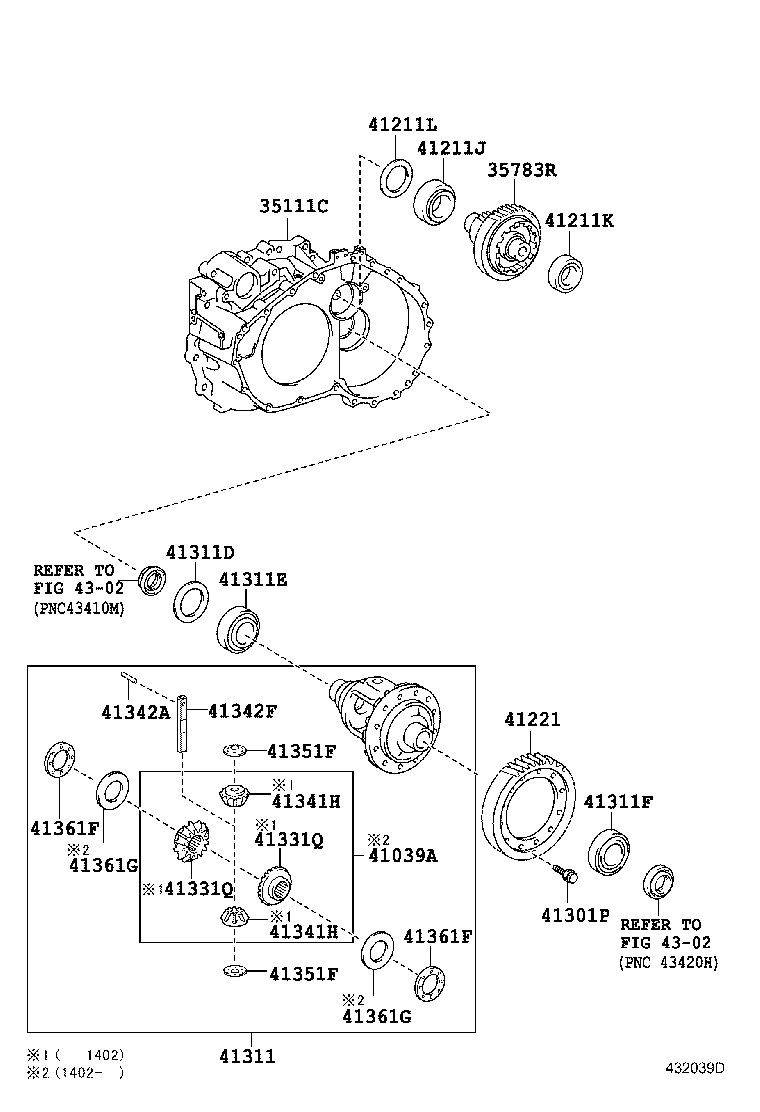

FRONT AXLE HOUSING DIFFERENTIAL

U660E (0804- )GGH20

ALPHARD VELLFIRE HV | FRONT AXLE HOUSING DIFFERENTIAL 35111C - HOUSING, TRANSAXLE 35783R - GEAR, COUNTER DRIVEN 41039A - GEAR KIT, DIFFERENTIAL 41211J - BEARING, TEPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH) 41211K - BEARING, TEPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH) 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) 41221 - GEAR, FRONT DIFFERENTIAL RING 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) 41311 - CASE, FRONT DIFFERENTIAL 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) 41331Q - GEAR, DIFFERENTIAL SIDE 41331Q - GEAR, DIFFERENTIAL SIDE 41341H - PINION, DIFFERENTIAL 41341H - PINION, DIFFERENTIAL 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR) 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR) ** Refer Fig ** Refer Fig
