TOYOTA AURIS UKP ADE150R-DHFNYN / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

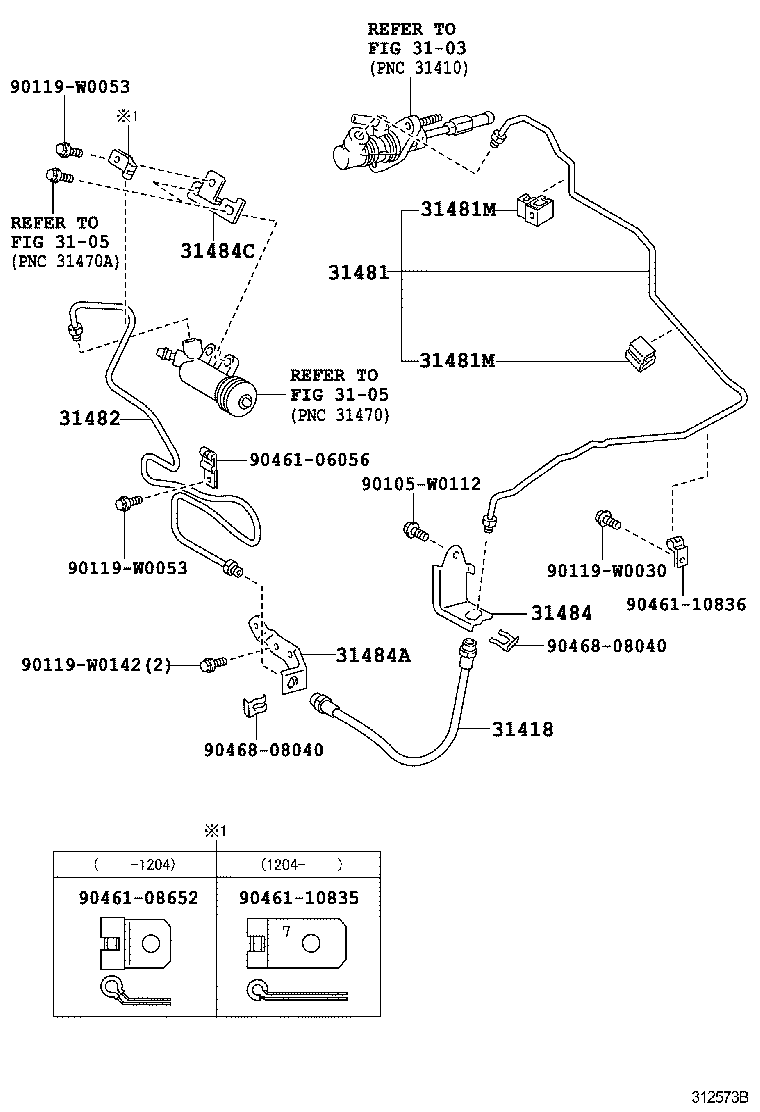

ILLUST NO. 2 OF 2(1105- )ADE150

AURIS UKP | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig 31418 - HOSE, CLUTCH 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) 31484C - BRACKET, CLUTCH TUBE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
