TOYOTA AURIS UKP ADE150R-DHFNYN / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

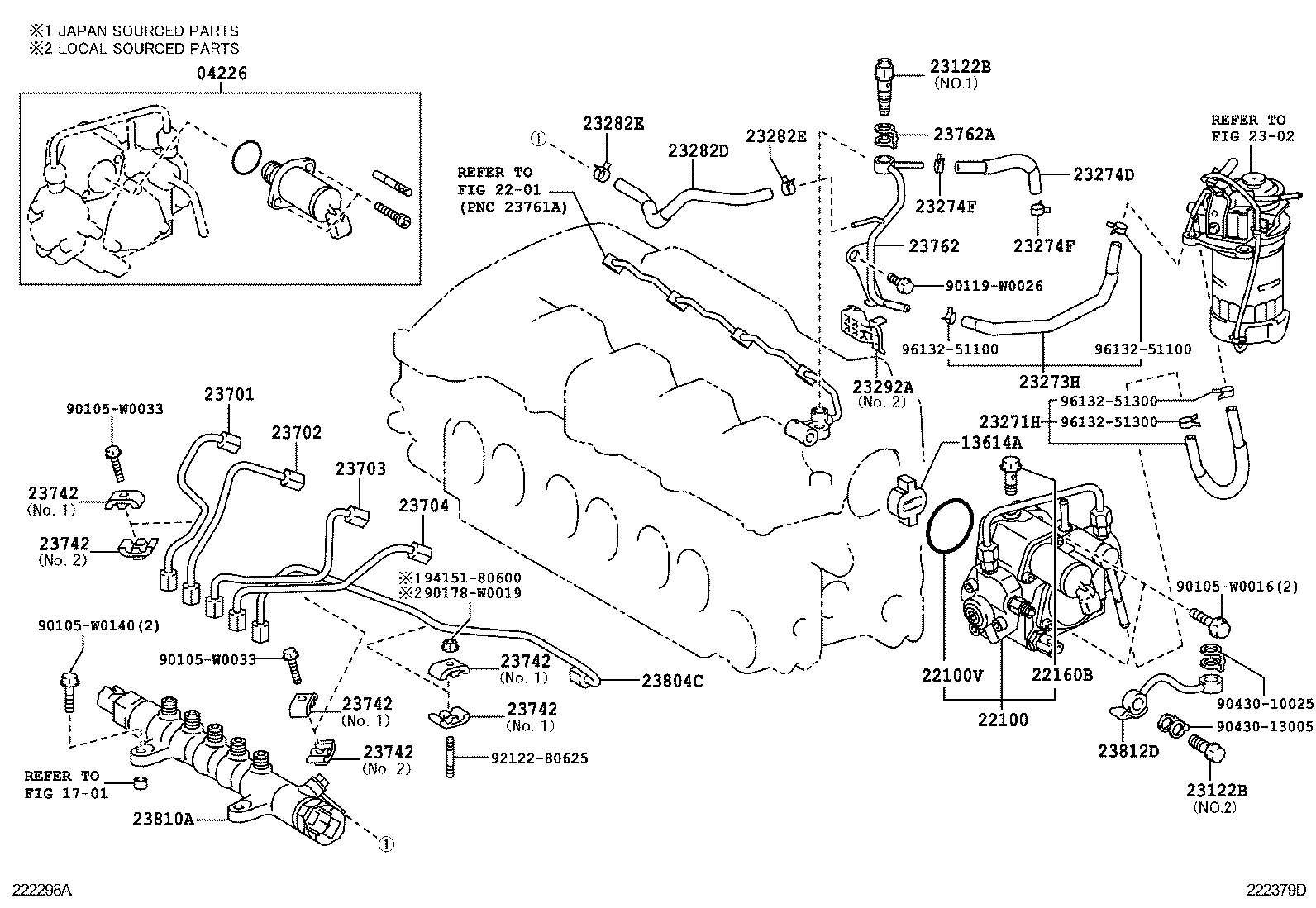

INJECTION PUMP ASSEMBLY

(0903- )1ADFTV

AURIS UKP | INJECTION PUMP ASSEMBLY 04226 - VALVE KIT, SUCTION CONTROL 13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1 ** Refer Fig ** Refer Fig 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100V - RING, O(FOR INJECTION PUMP) 22160B - SCREW 23122B - VALVE, CHECK 23122B - VALVE, CHECK 23271H - HOSE, FUEL, NO.1 23273H - HOSE, FUEL, NO.2 23274D - HOSE, FUEL, NO.3 23274F - CLIP(FOR FUEL HOSE NO.3) 23274F - CLIP(FOR FUEL HOSE NO.3) 23282D - HOSE, FUEL, NO.4 23282E - CLIP(FOR FUEL HOSE NO.4) 23282E - CLIP(FOR FUEL HOSE NO.4) 23292A - PROTECTOR, FUEL HOSE 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23762 - PIPE, NOZZLE LEAKAGE, NO.2 23762A - GASKET, NOZZLE LEAKAGE PIPE NO.2 23804C - PIPE SUB-ASSY, FUEL INLET 23810A - RAIL ASSY, COMMON 23812D - PIPE, FUEL, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
