TOYOTA AURIS UKP NRE150R-DHFDKN / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CYLINDER BLOCK

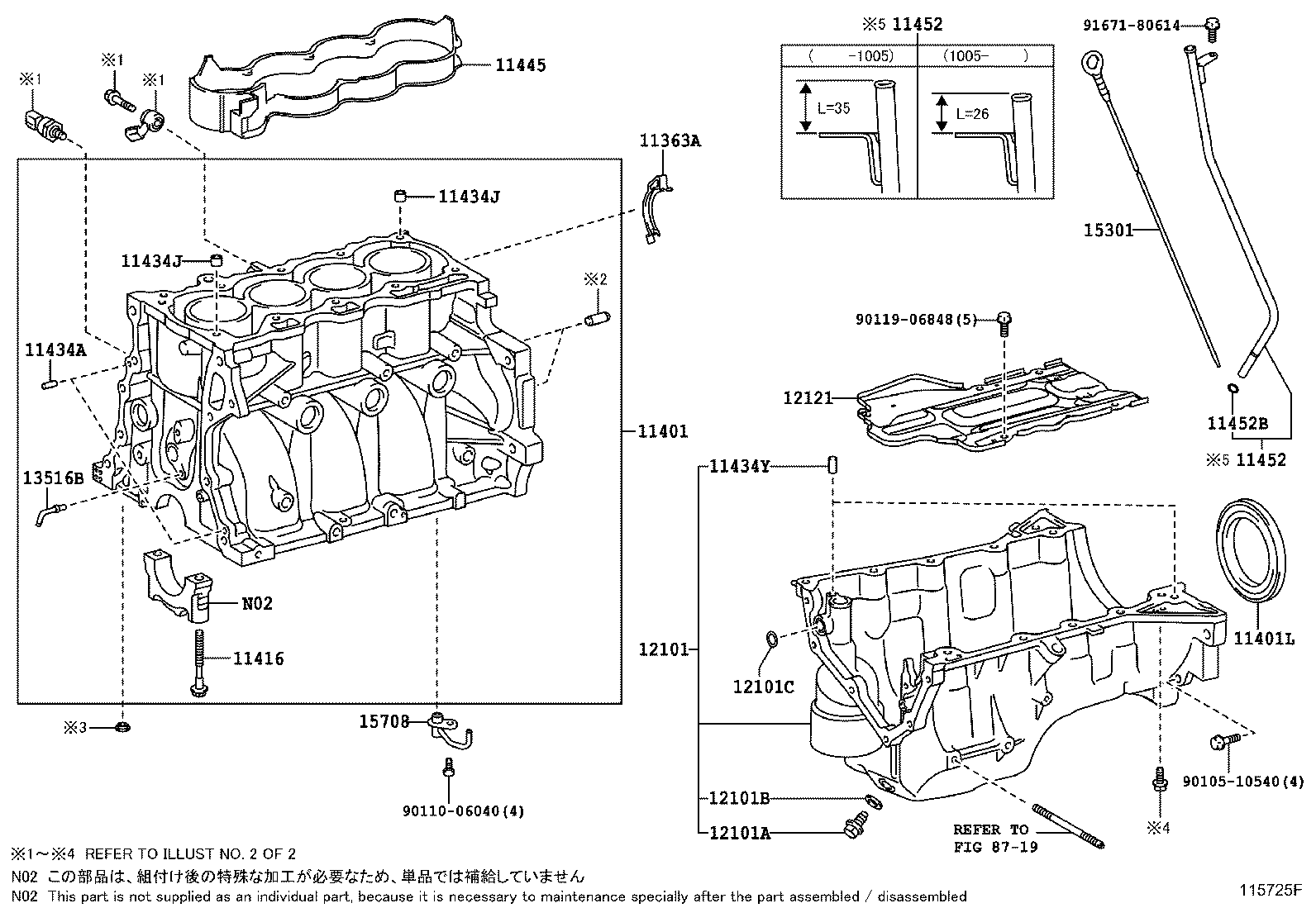

ILLUST NO. 1 OF 2(0811- )1NRFE

AURIS UKP | CYLINDER BLOCK 11363A - COVER, FLYWHEEL HOUSING SIDE 11401 - BLOCK SUB-ASSY, CYLINDER 11401L - SEAL, ENGINE REAR OIL 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434J - PIN, RING (FOR CYLINDER HEAD SET) 11434J - PIN, RING (FOR CYLINDER HEAD SET) 11434Y - PIN, STRAIGHT(FOR OIL PAN) 11445 - SPACER, CYLINDER BLOCK WATER JACKET 11452 - GUIDE, OIL LEVEL GAGE 11452 - GUIDE, OIL LEVEL GAGE 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12101C - RING, O(FOR OIL PAN) 12121 - PLATE, OIL PAN BAFFLE, NO.1 13516B - JET, OIL 15301 - GAGE SUB-ASSY, OIL LEVEL 15708 - NOZZLE SUB-ASSY, OIL, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
