TOYOTA AURIS UKP NRE150R-DHFDKN / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CAMSHAFT VALVE

(0811- )1NRFE

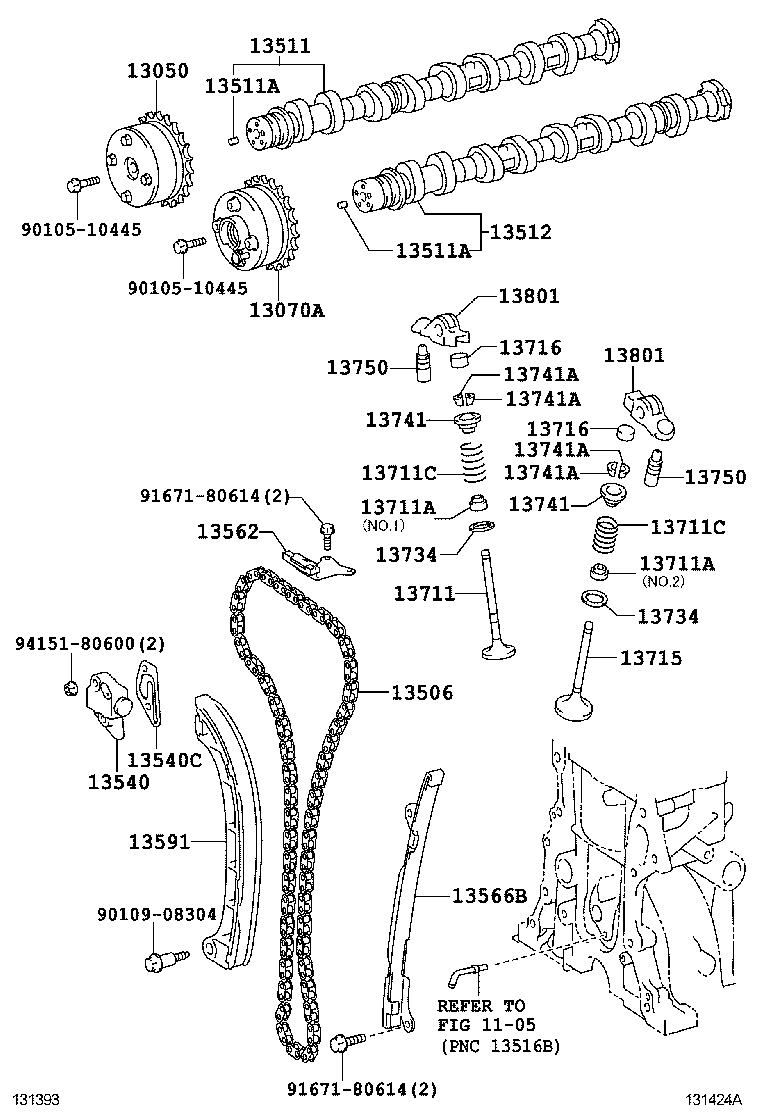

AURIS UKP | CAMSHAFT VALVE ** Refer Fig 13050 - GEAR ASSY, CAMSHAFT TIMING 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST 13506 - CHAIN SUB-ASSY 13511 - CAMSHAFT 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) 13512 - CAMSHAFT, NO.2 13540 - TENSIONER ASSY, CHAIN, NO.1 13540C - GASKET(FOR CHAIN TENSIONER) 13562 - DAMPER, CHAIN VIBRATION, NO.2 13566B - GUIDE, TIMING CHAIN 13591 - ARM, TIMING CHAIN TENSION 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711C - SPRING, COMPRESSION(FOR OUTER) 13711C - SPRING, COMPRESSION(FOR OUTER) 13715 - VALVE, EXHAUST 13716 - CAP, VALVE STEM 13716 - CAP, VALVE STEM 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13750 - ADJUSTER ASSY, VALVE LASH 13750 - ADJUSTER ASSY, VALVE LASH 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
