TOYOTA AURIS UKP ZRE151R-DHFNPN / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

(0706-1201)

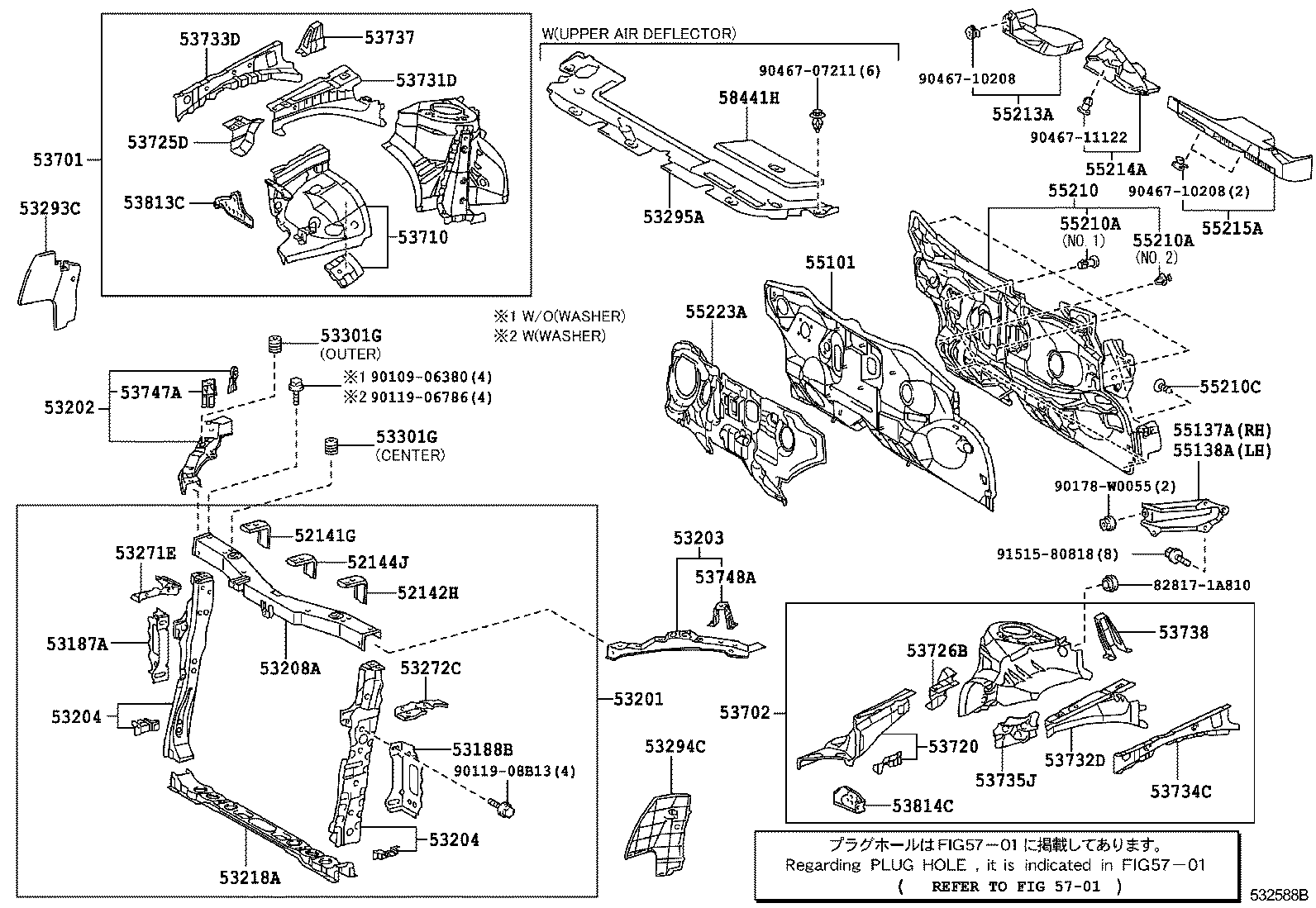

 AURIS UKP |  FRONT FENDER APRON DASH PANEL 52141G - STAY, FRONT BUMPER, RH 52142H - STAY, FRONT BUMPER, LH 52144J - STAY, FRONT BUMPER, CENTER 53187A - STAY, RADIATOR SUPPORT, RH 53188B - STAY, RADIATOR SUPPORT, LH 53201 - SUPPORT SUB-ASSY, RADIATOR 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53218A - SUPPORT, RADIATOR, LOWER 53271E - BRACKET, HEADLAMP MOUNTING, RH 53272C - BRACKET, HEADLAMP MOUNTING, LH 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53295A - DEFLECTOR, RADIATOR UPPER AIR 53301G - CUSHION, HOOD BUMPER 53301G - CUSHION, HOOD BUMPER 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53735J - PATCH, FRONT FENDER APRON, NO.5 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH 53747A - EXTENSION, APRON FENDER SIDE, RH 53748A - EXTENSION, APRON FENDER SIDE, LH 53813C - EXTENSION, FRONT FENDER, RH 53814C - EXTENSION, FRONT FENDER, LH 55101 - PANEL SUB-ASSY, DASH 55137A - BRACE, DASH TO FRAME, RH 55138A - BRACE, DASH TO FRAME, LH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210A - CLIP 55210C - CLIP 55213A - PAD, DASH PANEL SILENCER 55214A - PAD, DASH PANEL INSULATOR, NO.2 55215A - PAD, DASH PANEL INSULATOR, NO.3 55223A - INSULATOR, DASH PANEL, OUTER ** Refer Fig 58441H - COVER, BATTERY SERVICE HOLE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
