TOYOTA AURIS UKP ZRE151R-DHFNPN / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

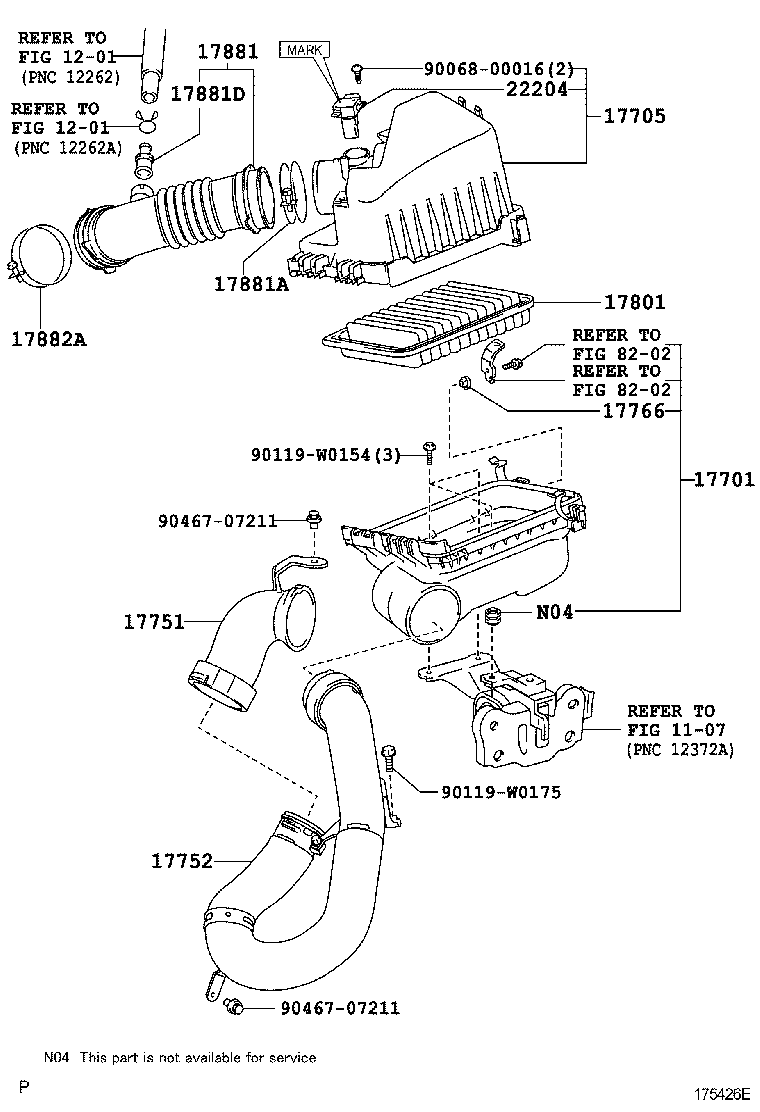

AIR CLEANER

(0706- )1ZR#,2ZRFE

AURIS UKP | AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig 17701 - CASE SUB-ASSY, AIR CLEANER 17705 - CAP SUB-ASSY, AIR CLEANER 17751 - INLET, AIR CLEANER, NO.1 17752 - INLET, AIR CLEANER, NO.2 17766 - STAY, AIR CLEANER, NO.2 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
