TOYOTA CAMRY AURION HV ARL ACV40R-DEADKQ / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

(0606- )ALT

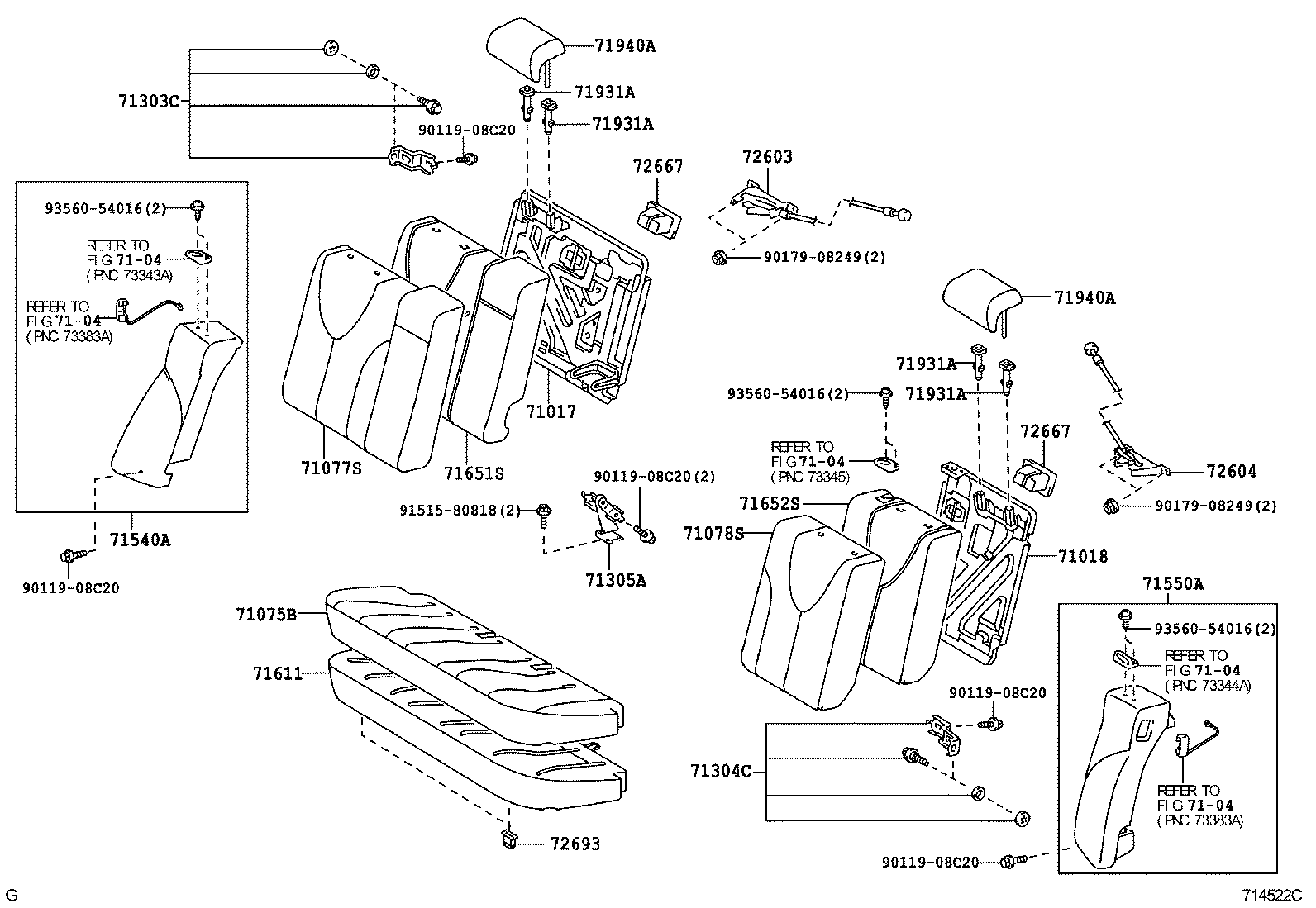

CAMRY AURION HV ARL | REAR SEAT SEAT TRACK 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER 71540A - BACK ASSY, REAR SIDE SEAT, RH 71550A - BACK ASSY, REAR SIDE SEAT, LH 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER 72693 - HOOK, REAR SEAT CUSHION LOCK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
