TOYOTA CAMRY AURION HV ARL ASV50L-DEFSKV / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

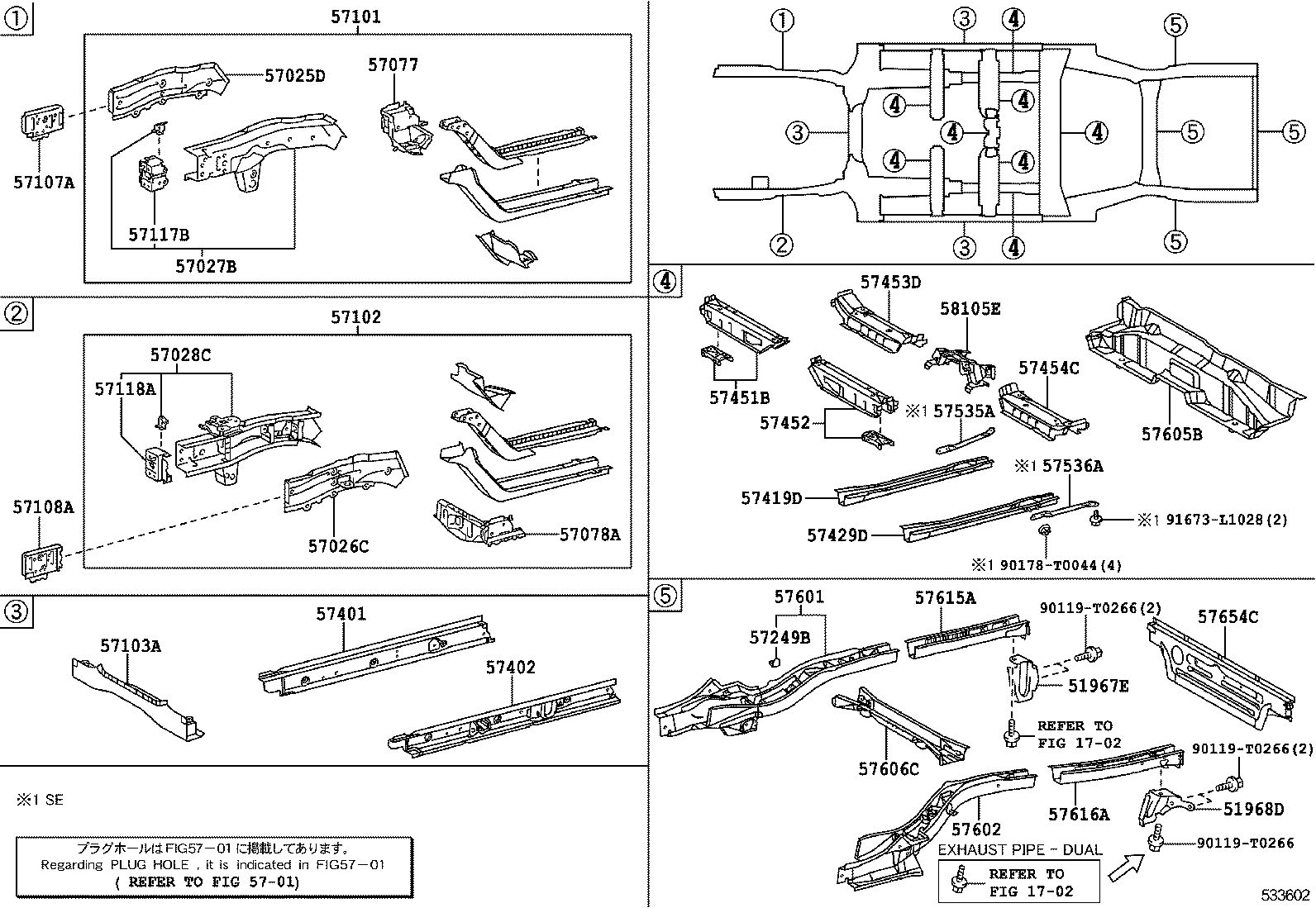

FLOOR SIDE MEMBER

(1110- )GCC

 CAMRY AURION HV ARL |  FLOOR SIDE MEMBER ** Refer Fig ** Refer Fig 51967E - HOOK, TRANSPORT, REAR RH 51968D - HOOK, TRANSPORT, REAR LH ** Refer Fig 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH 57028C - MEMBER SUB-ASSY, FRONT SIDE, INNER LH 57077 - BOX SUB-ASSY, TORQUE, FRONT RH 57078A - BOX SUB-ASSY, TORQUE, FRONT LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH 57249B - BRACKET, FLEXIBLE HOSE, NO.1 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57419D - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH 57429D - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH 57451B - MEMBER, FRONT FLOOR CROSS, RH 57452 - MEMBER, FRONT FLOOR CROSS, LH 57453D - MEMBER, FRONT FLOOR CROSS SIDE, RH 57454C - MEMBER, FRONT FLOOR CROSS SIDE, LH 57535A - BRACE, FRONT FLOOR, RH 57536A - BRACE, FRONT FLOOR, LH 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH 57654C - MEMBER, REAR FLOOR CROSS, NO.3 58105E - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
