TOYOTA CAMRY CHINA ACV40L-JEAEKC / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

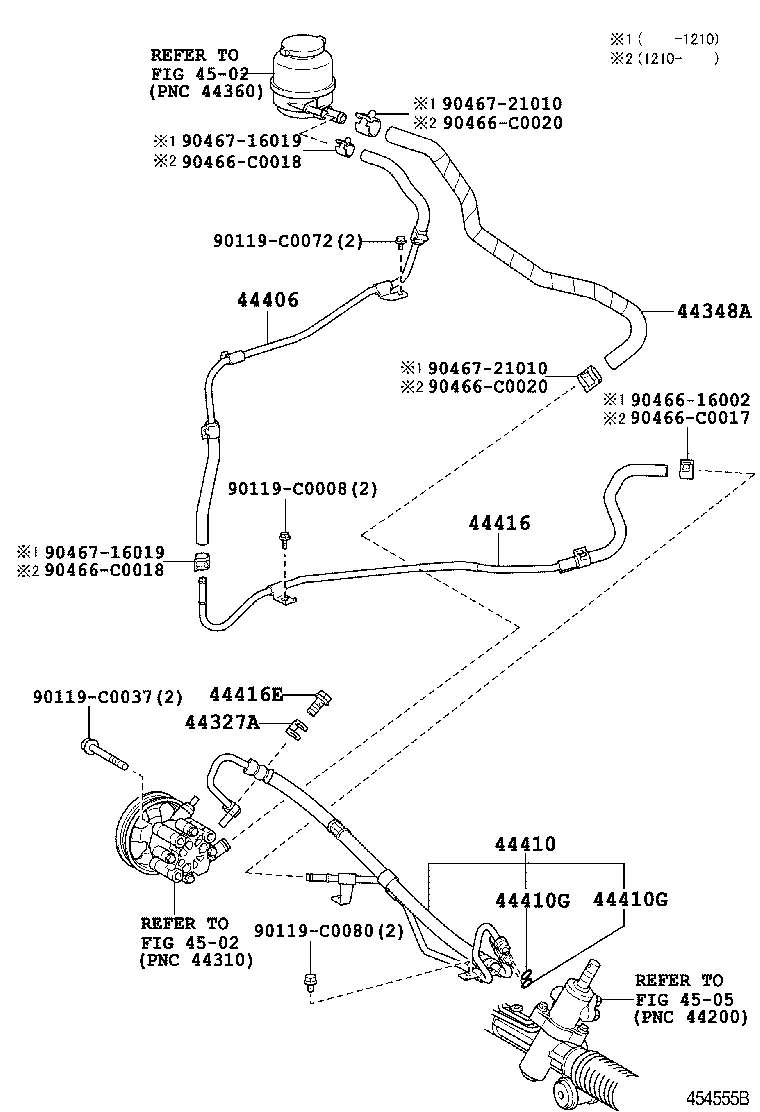

POWER STEERING TUBE

(0605- )ACV4#

CAMRY CHINA | POWER STEERING TUBE 44327A - GASKET, PRESSURE PORT, NO.1 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44406 - TUBE SUB-ASSY, RETURN 44410 - TUBE ASSY, PRESSURE FEED 44410G - RING, O(FOR PRESSURE FEED TUBE) 44410G - RING, O(FOR PRESSURE FEED TUBE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44416E - BOLT, UNION(FOR RETURN TUBE) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
