TOYOTA CAMRY CHINA AHV41L-JEXGBC / BODY / SUSPENSION CROSSMEMBER UNDER COVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SUSPENSION CROSSMEMBER UNDER COVER

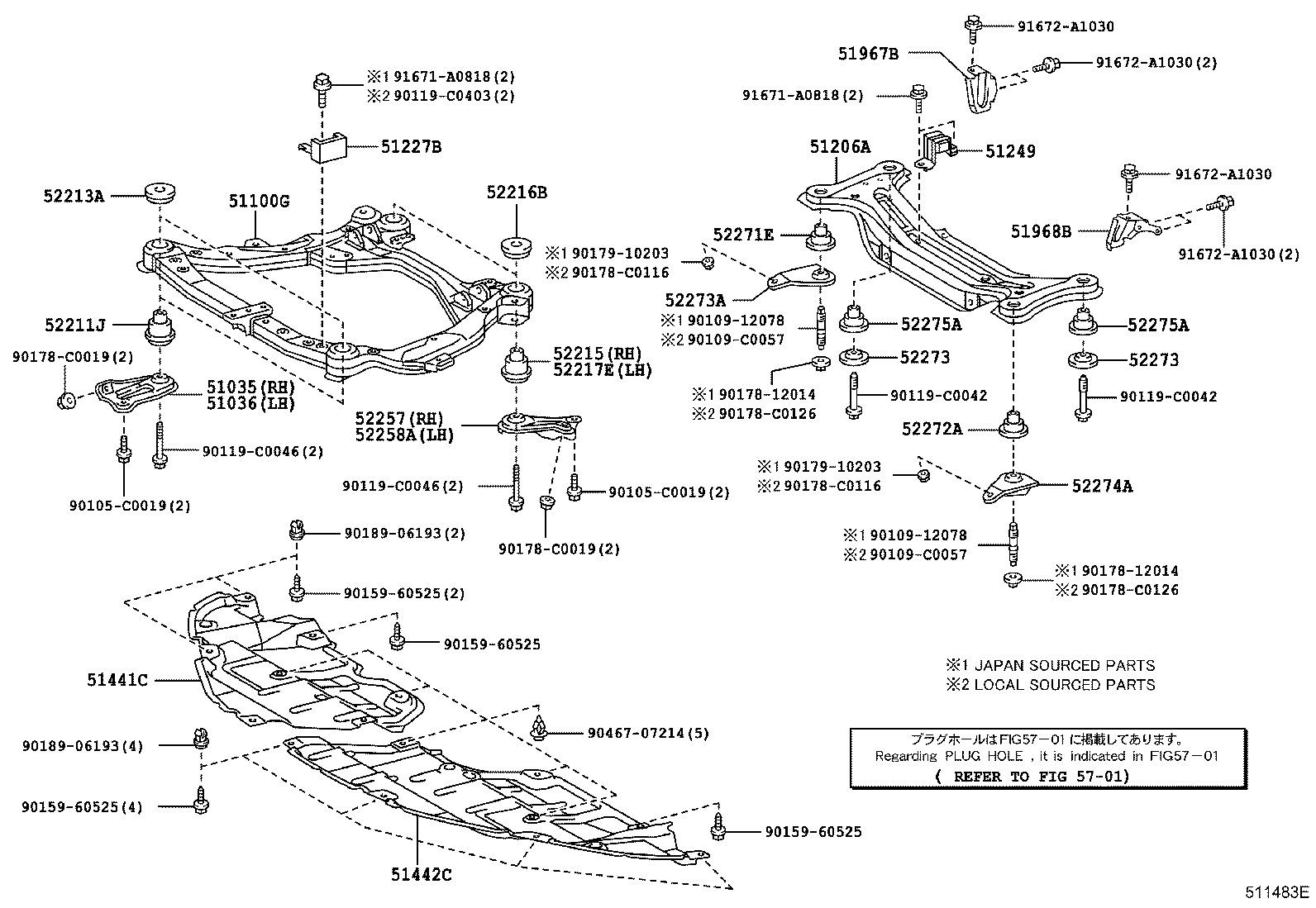

ILLUST NO. 1 OF 2(0605- )

CAMRY CHINA | SUSPENSION CROSSMEMBER UNDER COVER 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH 51100G - FRAME ASSY, FRONT 51206A - MEMBER SUB-ASSY, REAR SUSPENSION 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC 51249 - DAMPER, REAR SUSPENSION MEMBER 51441C - COVER, ENGINE UNDER, RH 51442C - COVER, ENGINE UNDER, LH 51967B - HOOK, TRANSPORT, REAR RH 51968B - HOOK, TRANSPORT, REAR LH 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH 52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH 52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
