TOYOTA CAMRY CHINA AHV41L-JEXGBC / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

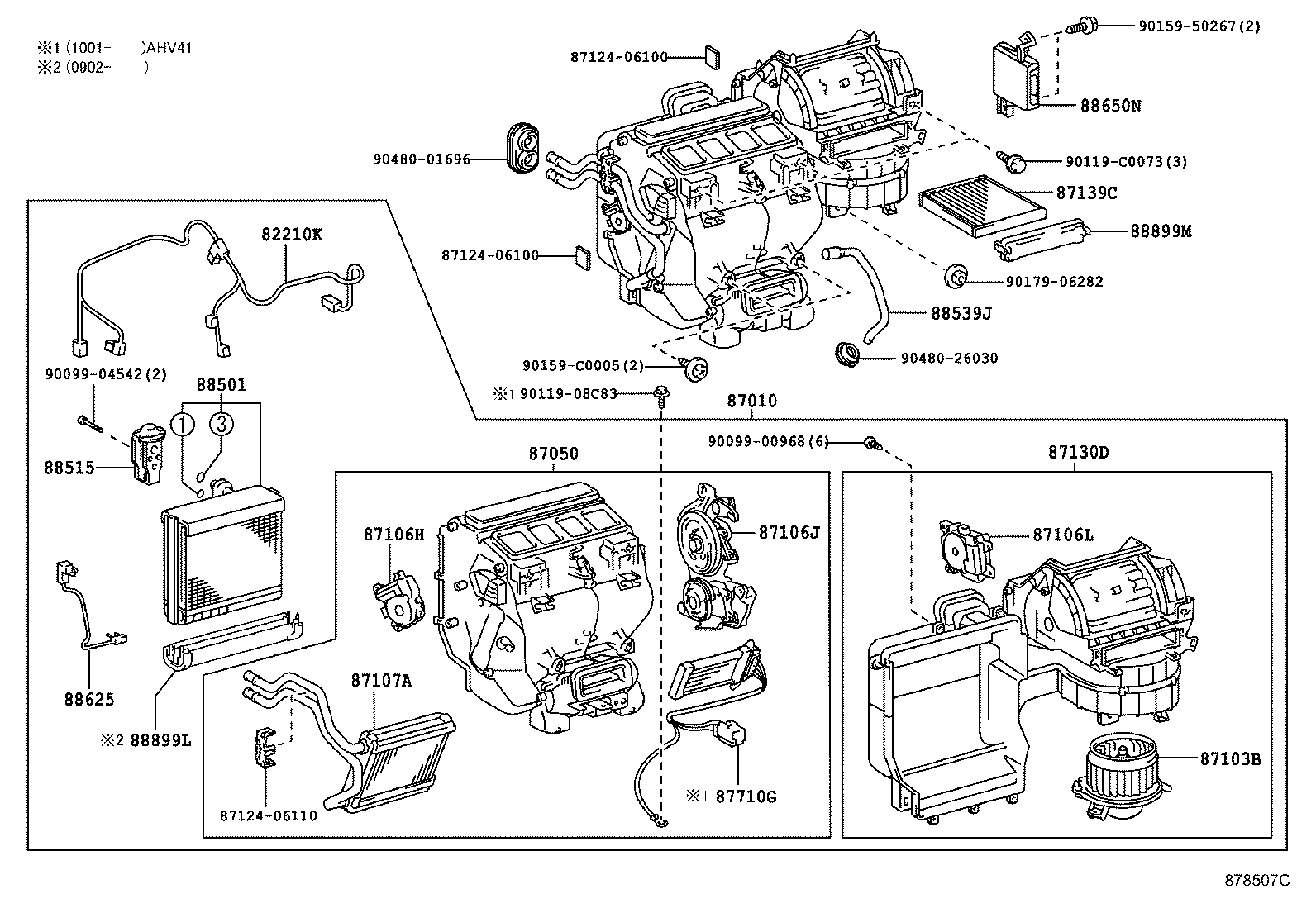

ILLUST NO. 1 OF 2(0605- )

CAMRY CHINA | HEATING AIR CONDITIONING COOLER UNIT 82210K - HARNESS ASSY, AIR CONDITIONER 87010 - UNIT ASSY, AIR CONDITIONER 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87106L - SERVO SUB-ASSY, DAMPER 87107A - UNIT SUB-ASSY, HEATER RADIATOR ** Std Part ** Std Part ** Std Part 87130D - BLOWER ASSY 87139C - FILTER, CLEAN AIR 87710G - QUICK HEATER ASSY 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539J - HOSE, DRAIN COOLER 88625 - THERMISTOR, COOLER, NO.1 88650N - AMPLIFIER ASSY, AIR CONDITIONER 88899L - PARTS, COOLING UNIT 88899M - PLATE, COVER(FOR AIR FILTER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
