TOYOTA CAMRY CHINA AHV41L-JEXGBC / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

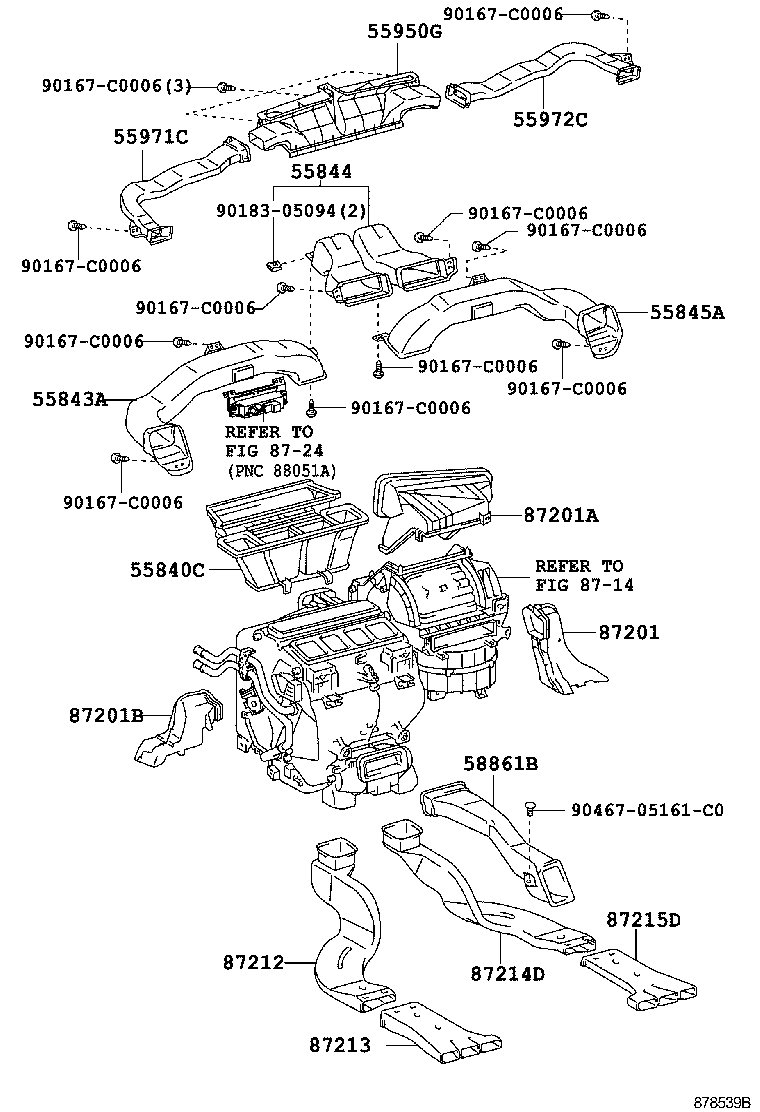

AIR DUCT ILLUST NO. 2 OF 3(0605- )

CAMRY CHINA | HEATING AIR CONDITIONING CONTROL AIR DUCT 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 55843A - DUCT, HEATER TO REGISTER, NO.1 55844 - DUCT, HEATER TO REGISTER, NO.2 55845A - DUCT, HEATER TO REGISTER, NO.3 55950G - NOZZLE ASSY, DEFROSTER 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 58861B - DUCT, CONSOLE BOX, NO.1 ** Refer Fig 87201 - DUCT SUB-ASSY, AIR, NO.1 87201A - DUCT SUB-ASSY, AIR 87201B - DUCT SUB-ASSY, AIR, NO.2 87212 - DUCT, AIR, REAR NO.1 87213 - DUCT, AIR, REAR NO.2 87214D - DUCT, AIR, REAR NO.3 87215D - DUCT, AIR, REAR NO.4 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
