TOYOTA CAMRY CHINA AHV41L-JEXGBC / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE MASTER CYLINDER

(1003- )AHV41

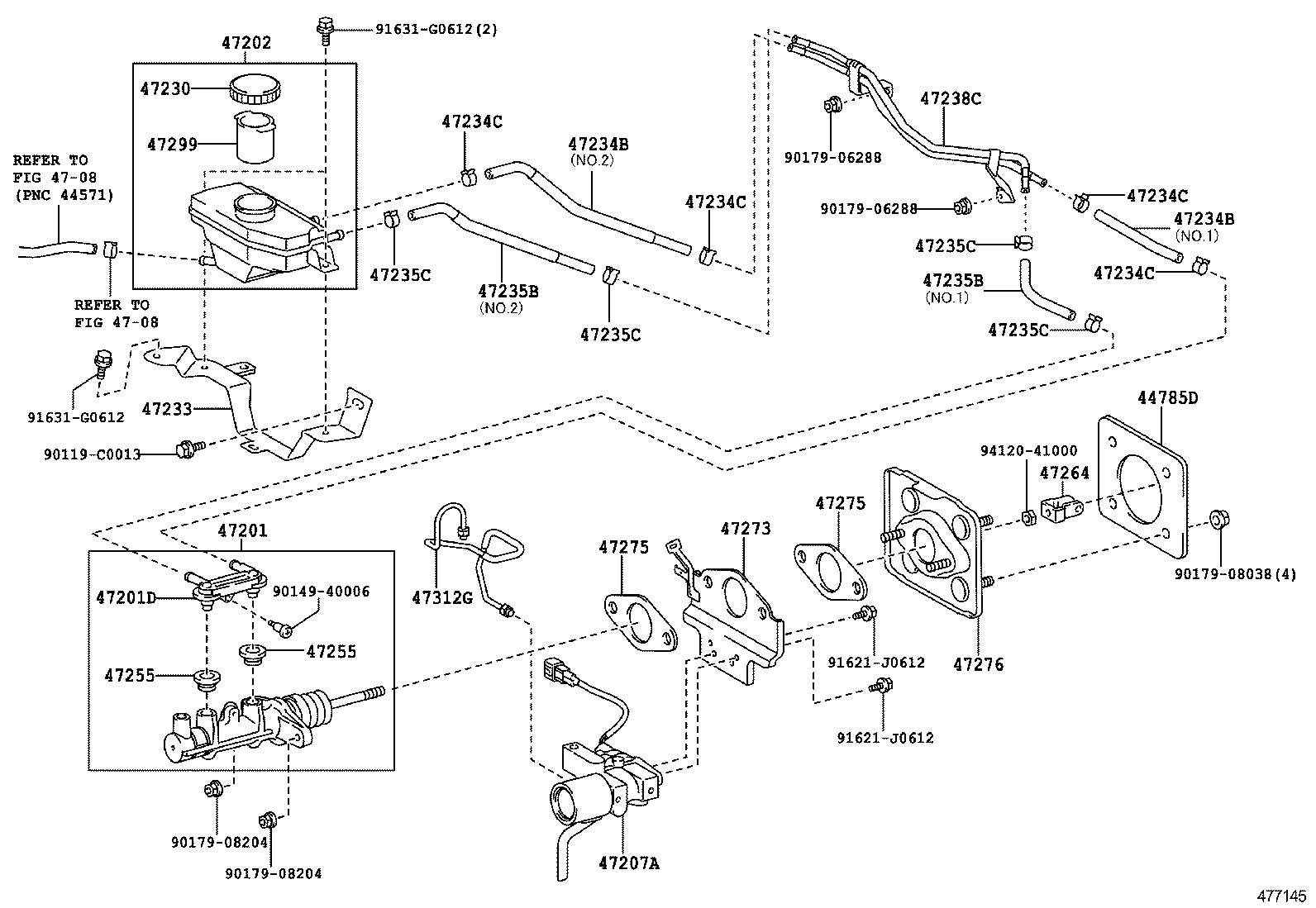

CAMRY CHINA | BRAKE MASTER CYLINDER 44785D - GASKET, BRAKE MASTER CYLINDER ** Refer Fig ** Refer Fig 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47201D - UNION, BRAKE MASTER CYLINDER, NO.1 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47233 - BRACKET, RESERVOIR 47234B - TUBE, RESERVOIR, NO.1 47234B - TUBE, RESERVOIR, NO.1 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) 47238C - TUBE, RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47273 - BRACKET, BRAKE STROKE SIMULATOR 47275 - GASKET, BRAKE MASTER CYLINDER 47275 - GASKET, BRAKE MASTER CYLINDER 47276 - BRACKET, BRAKE MASTER CYLINDER 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR 47312G - TUBE, BRAKE STROKE SIMULATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
