TOYOTA CAMRY HYBRID CHINA ACV51L-JEPEKC / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CYLINDER BLOCK

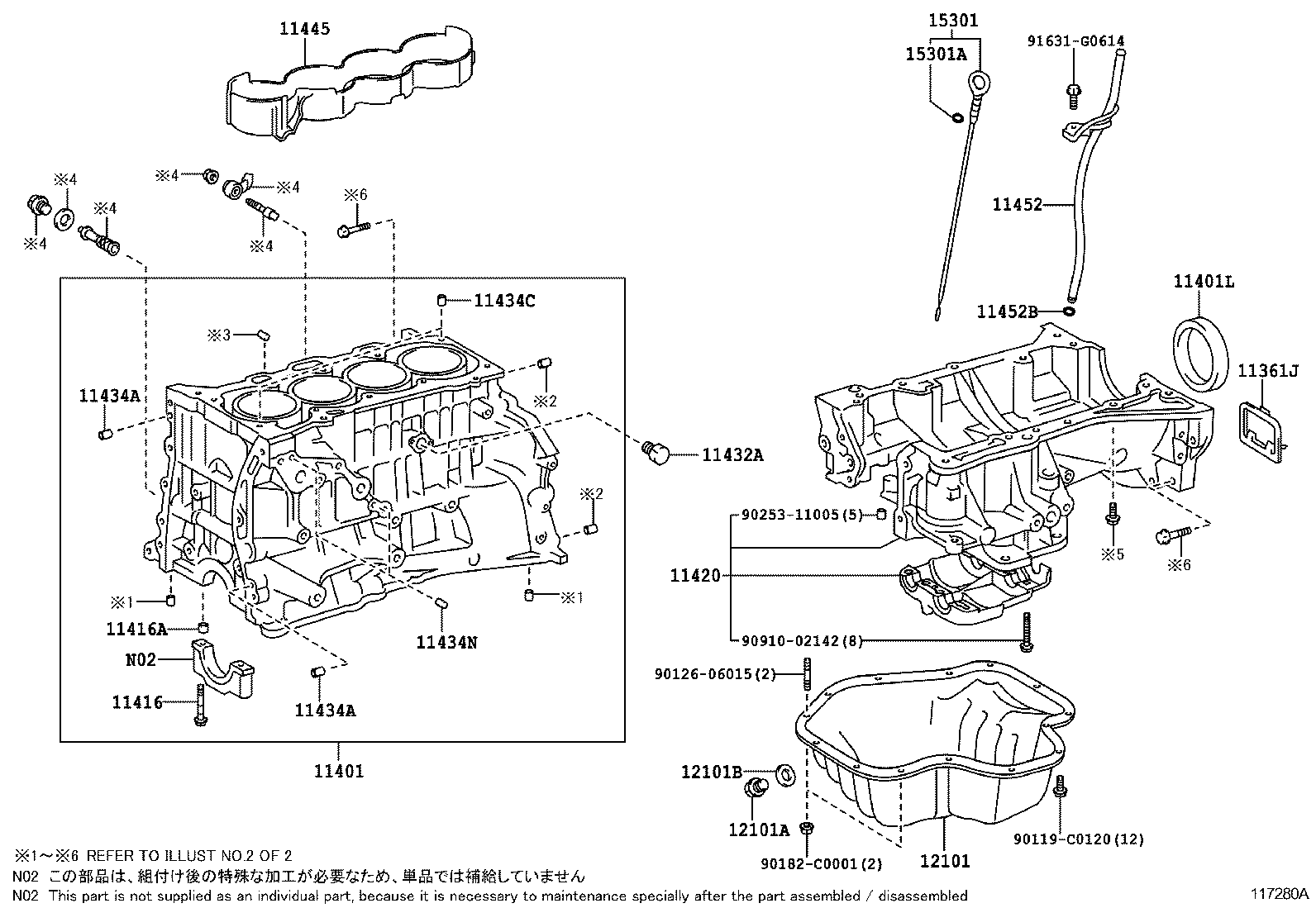

ILLUST NO. 1 OF 2(1112- )1AZFE

CAMRY HYBRID CHINA | CYLINDER BLOCK 11361J - COVER, FLYWHEEL HOUSING UNDER 11401 - BLOCK SUB-ASSY, CYLINDER 11401L - SEAL, ENGINE REAR OIL 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) 11420 - CRANKCASE ASSY, STIFFENING 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING) 11445 - SPACER, CYLINDER BLOCK WATER JACKET 11452 - GUIDE, OIL LEVEL GAGE 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 15301 - GAGE SUB-ASSY, OIL LEVEL 15301A - RING, O(FOR OIL LEVEL GAGE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
