TOYOTA CAMRY HYBRID CHINA ACV51L-JEPSKC / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

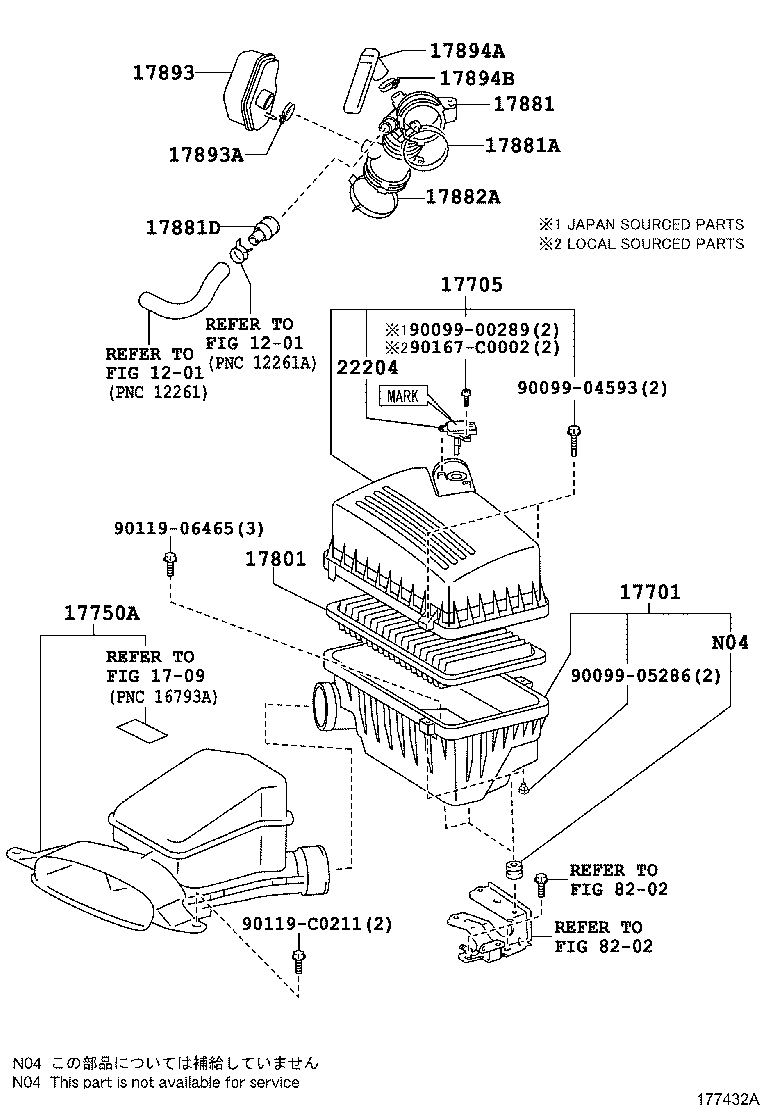

AIR CLEANER

(1112- )1AZFE

CAMRY HYBRID CHINA | AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig 17701 - CASE SUB-ASSY, AIR CLEANER 17705 - CAP SUB-ASSY, AIR CLEANER 17750A - INLET ASSY, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17893 - RESONATOR, INTAKE AIR 17893A - CLAMP, HOSE 17894A - RESONATOR, INTAKE AIR, NO.2 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
