TOYOTA COASTER CHINA XZB53L-ZCMSY / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

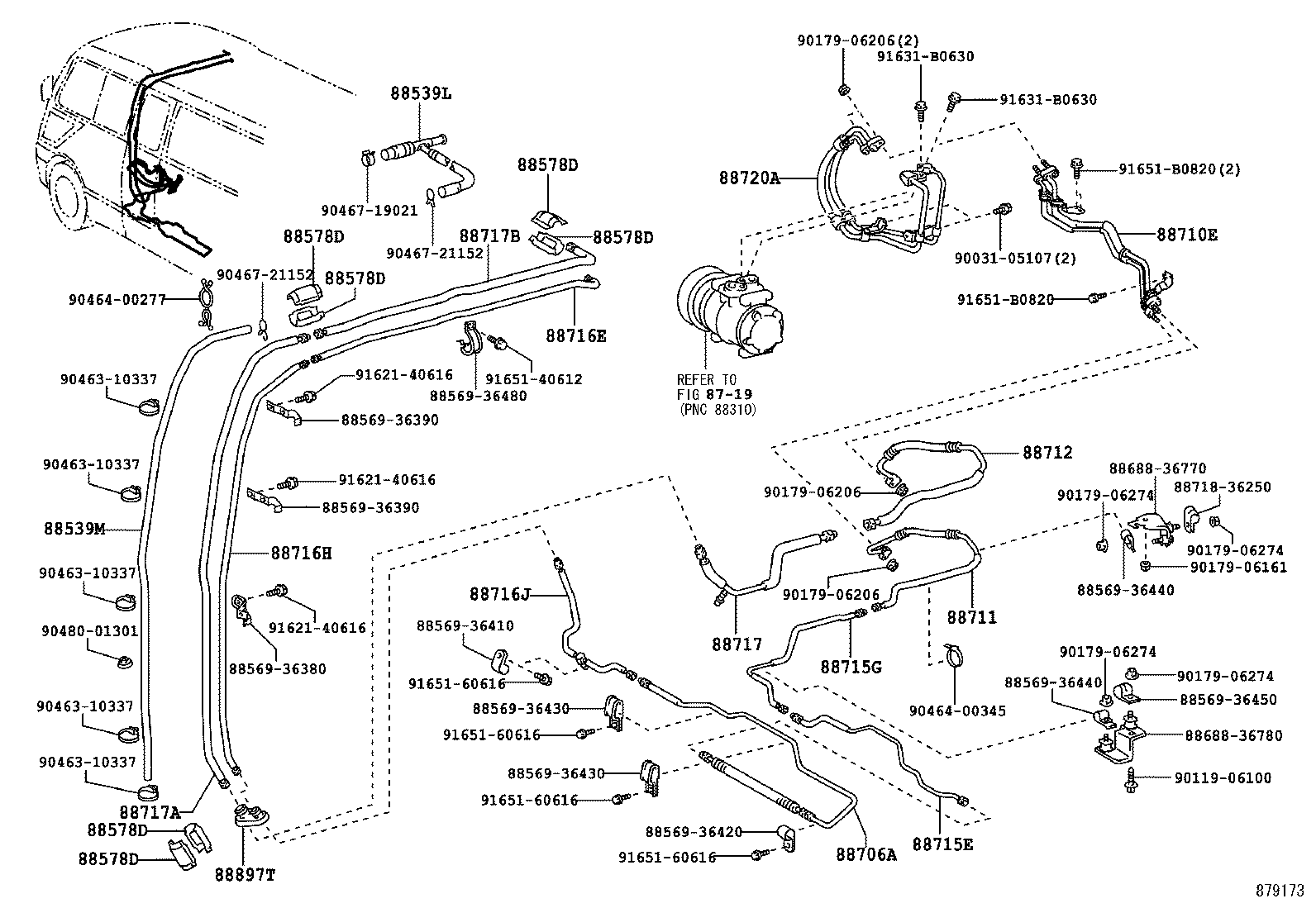

COOLER PIPING ILLUST NO. 3 OF 3(0701-1108)XZB53

COASTER CHINA | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig 88539L - HOSE, DRAIN COOLER 88539M - HOSE, DRAIN COOLER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 ** Std Part ** Std Part 88706A - TUBE SUB-ASSY, LIQUID, A 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E 88715G - TUBE, DISCHARGE, G 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88716H - PIPE, COOLER REFRIGERANT LIQUID, H 88716J - PIPE, COOLER REFRIGERANT LIQUID, J 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B ** Std Part 88720A - HOSE & ACCESSORY, AIRCONDITIONER 88897T - GROMMET, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
