TOYOTA COASTER BB42L-BRMSSV / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

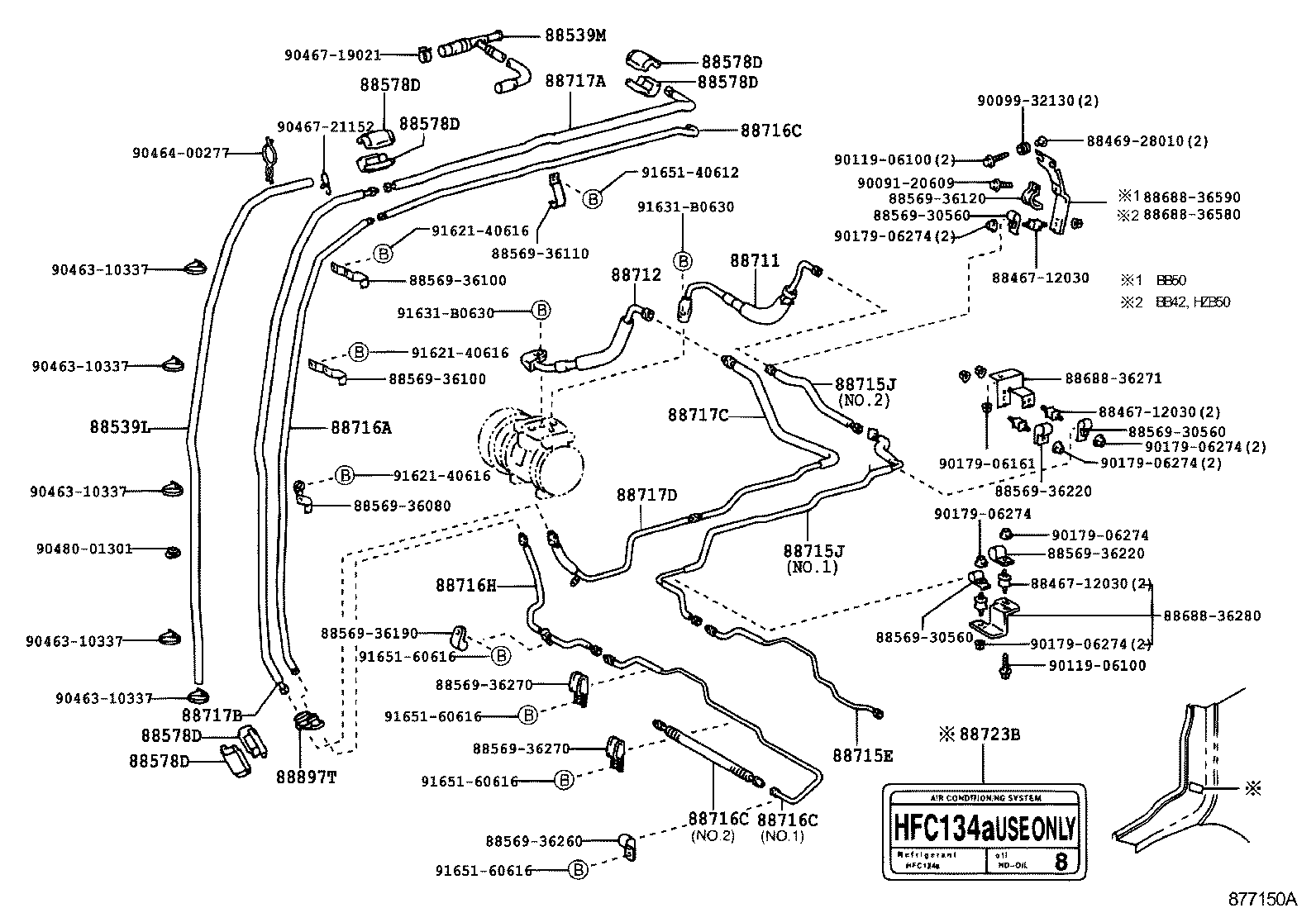

HEATING AIR CONDITIONING COOLER PIPING

ILLUST NO. 3 OF 4(0408- )BB42,50,HZB50..LHD..WC..5F

COASTER | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Std Part ** Std Part ** Std Part 88539L - HOSE, DRAIN COOLER 88539M - HOSE, DRAIN COOLER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 88578D - PACKING, COOLER PIPE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E 88715J - TUBE, DISCHARGE, J 88715J - TUBE, DISCHARGE, J 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716H - PIPE, COOLER REFRIGERANT LIQUID, H 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B 88717C - PIPE, COOLER REFRIGERANT SUCTION, C 88717D - PIPE, COOLER REFRIGERANT SUCTION, D 88723B - LABEL, COOLER SERVICE CAUTION 88897T - GROMMET, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
